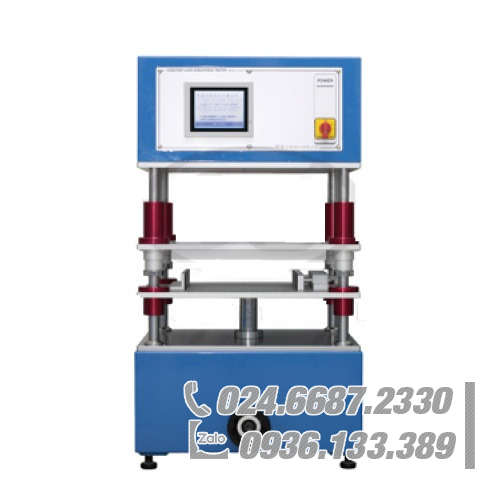

Máy kiểm tra độ bền nút nhấn 5102, 5102W / Push-Key Load Durability Tester 5102, 5102W

Máy kiểm tra độ bền nút nhấn 5102, 5102W / Push-Key Load Durability Tester 5102, 5102W

This model can be used to test the durability life of push-keys for Notebook, Cell phone,
PDA and all kinds of push buttons and switches. In addition, it can also test several products. (with multipoint test) at the same time. Further, each push key can be set into varied compressions and heights.

Mã: 1211-10390 Danh mục:

This model can be used to test the durability life of push-keys for Notebook, Cell phone, PDA and all kinds of push buttons and switches. In addition, it can also test several products. (with multipoint test) at the same time. Further, each push key can be set into varied compressions and heights.

Main
Mechanism Unit
●　Stroke – 10mm
●　Work piece max. height – 100mm
●　Holding capacity – 400X300mm(5102) – 600X450mm(5102W)
●　Test head – 350X250mm(5102) – 550X400mm(5102W)
●　Frequencies – 999999X10times
●　Speed　- 60-360rpm
Optional
●　Fixing rod (5 standard accessories)
●　Loading tool (15 std. Accessories)
Dimension
●　526X426X1000mm(5102)
●　780X700X1000mm(5102W)
Voltage
●　AC110V or 220V
Weight
●　100kg(5102)
●　180kg(5102W)
Load Tool
●　Capacity – 100-450gf or 100-1000gf
●　Height range/Min. interval – 15mm
●　between two tools – X　direction10mm
●　between two tools – Y　direction12mm
