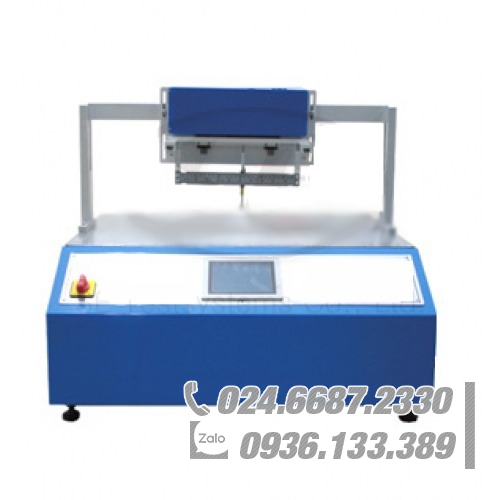

Specialized in bigger Push-Key & Switch testing Application of all kinds of Push-Key & Switch durability testing , different keys can own its pressure and testing height . Testing heads only allow single-row testing. |
| Model | 5103 |
| Stroke | 10mm |
| Height range | 50mm |
| Fixture capacity | 700×400mm |
| Testing head installing range |
250mm(only single-row) |
| Testing times | 999999×10 times |
| Testing speed | 60-360rpm |
| Load capacity | 10-450gf or100-1000gf |
| Testing head adjustable | 15mm |
| Min. distance between both heads | 10mm |
| Dimension | 790 (W)×490 (D)×750 (H)mm |
| Weight | 100kg |
| Power | AC 110V or 220V |
