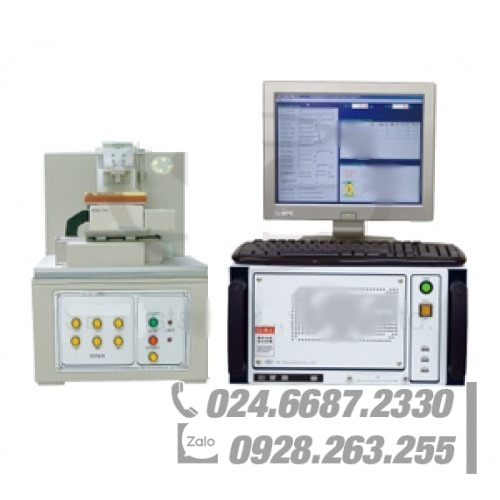

Máy kiểm tra tải 3 trục (XYZ) 9106S / Auto Three Axes (XYZ) Load Tester (PogoPin Tester) 9106S

Máy kiểm tra tải 3 trục (XYZ) 9106S / Auto Three Axes (XYZ) Load Tester (PogoPin Tester) 9106S

CONCURRENT ACTIVE IMPEDANCE MEASUREMENT (mΩ) (option)
For all kinds of compression tests. Coordinated setting, automatic stroke test, and value storage. Windows Chinese (English) version with data storage function (test conditions, load-distance curve, life curve and test report…etc.)

Mã: 1211-10110 Danh mục:

CONCURRENT ACTIVE IMPEDANCE MEASUREMENT (mΩ) (option)

For all kinds of compression tests. Coordinated setting, automatic stroke test, and value storage. Windows Chinese (English) version with data storage function (test conditions, load-distance curve, life curve and test report…etc.)

Optional Accessories
●　Test of the load and displacement values for the conduction point .
●　The impedance value setting of the conduction point.
●　Active impedance testing system.
Features
●　Input X,Y coordinate randomly , and the tester will move automatically.
●　Max. stroke and loading value input for testing automatically.
●　Machine will pause or return while loading value reaches setting.
●　Machine will pause or return while stroke value reaches setting .
●　Test and output the diagrams of each stroke (0.01mm) and loading.
●　Cross-shape cursor can trace the track of each test diagram , so as to determine the corresponding values of load and displacement.
●　Minimum resolution is 0.01mm.
●　Direct printout and storage. (Load-displacement curve, life curve and test report.)
●　Data storage in hard disk (without limit ).
●　The test conditions are programmed by computer pictures. (including test load, stroke , speed, frequency, and pause time …etc.)
●　The title of the test report can be revised at any time. (either in Chinese or in English)
●　The test report can be transferred to Excel file for editing or output through Network.
Model 9106S
Load capacity 2kgf
Load Resolution 0.1gf
Load Accuracy ± 0.2% FS
Z axis stroke 100mm(Accuracy±0.03)
Z resolution 0.01mm,0.001mm(Option)
Z speed range 1-200mm/min
X axis stroke 100mm(Accuracy±0.03)
X resolution 0.01mm
Y axis stroke 60mm(Accuracy±0.03)
Y resolution 0.01mm
X-Y stroke 20mm/sec
Max. square measure 100X60mm
Impedance 0.1mΩ-3000Ω(four-wire )
Impedance resolution 0.1mΩ
Impedance accuracy 1mΩ(four-wire )
Pressure limited 20kg
Holding table size 120X120mm
Power AC 110V or 220V
Dimension 320 (W)×530 (D)×500 (H)mm
Controller dimension 440 (W)×350 (D)×235 (H)mm
