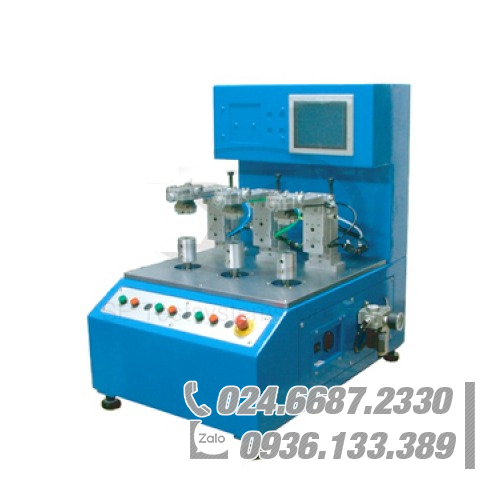

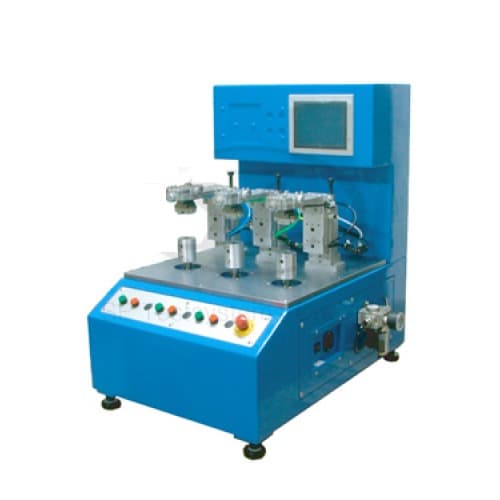

Máy kiểm tra độ bền đóng gập của thiết bị điện tử 3 trục XYZ 2503T / Auto Three Axes (XYZ) Hinge Running-in Machine 2503T

Máy kiểm tra độ bền đóng gập của thiết bị điện tử 3 trục XYZ 2503T / Auto Three Axes (XYZ) Hinge Running-in Machine 2503T

Developed by Torque value testing in earlier period .
3 sets Running-in systems for 3 kinds of hinges pre-shaking , and working with auto core-find device in different angle,times and speed required.
Touch input monitor , origin point calibrated , 20 sets conditions for option.

Mã: 1211-10080 Danh mục:

Developed by Torque value testing in earlier period .

3 sets Running-in systems for 3 kinds of hinges pre-shaking , and working with auto core-find device in different angle,times and speed required.

Touch input monitor , origin point calibrated , 20 sets conditions for option.

Features
●　Max. Torque 50kgf-cm
●　Servo motor transmission system with touch paned and easily operation.
●　Closed-loop controlled system ,making accurate angle , and auto memorized upon power off .
●　Fixture auto up-down function, operator just in charge of replacing working piece.
●　 Fine tuning aims at center of fixture making easy operation in each axis .
●　Auto core-find device in fixed end without centrifugal force problem
●　3 sets hinges Running-in system can work together at the same time .
●　Different conditions set & stored in controller for option .
●　Auto core-find device applicable of test piece setting & testing .
●　Touch monitor with small space & convenience .
●　Available of all kinds of test pieces with memorize function for 20 sets .
●　Storage & setting of testing conditions operated by controller picture .
Model 2503T
Max. Rotating Angle 3600°
Max. Rotating Speed 300rpm
Z Max. stroke 50mm
Concurrent Testing No. 3 sets
Storage No. 20sets testing conditions
LCD operation Panel LCD touch panel
Dimension 430 (W)×630 (D)×670 (H)mm
Weight 35kg
Power AC 110V or 220V
