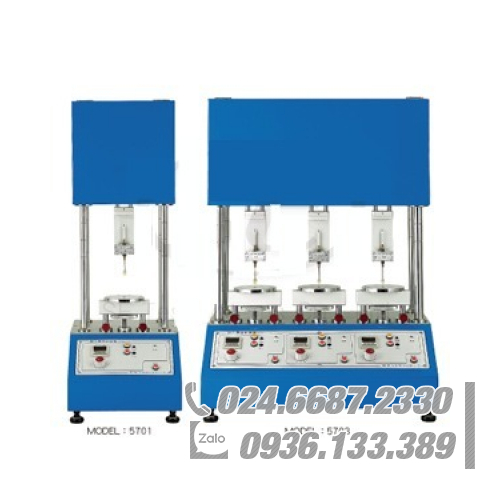

Máy kiểm tra độ bền của thiết bị điện tử, 3 trạm thử đồng thời 5701, 5703 / Auto Life Tester (Single Head & Three Heads) 5701, 5703

Máy kiểm tra độ bền của thiết bị điện tử, 3 trạm thử đồng thời 5701, 5703 / Auto Life Tester (Single Head & Three Heads) 5701, 5703

TEST THE MECHANICAL LIFE AND ELECTRICITY LIFE AT THE SAME TIME

Mã: 1211-10060 Danh mục:

EST THE MECHANICAL LIFE AND ELECTRICITY LIFE AT THE SAME TIME

For all push buttons in fixed loading durability life testing.

For all connectors, springs in durability life testing .

Feature
Push-key Electric Life Testing . (Option)
●　Max. DC30V 20mA load
●　Inspect upper start point is OFF in each test.
●　Inspect lower start point is ON in each test.
●　Conduct point impedance value can be set every time.
●　Record non-conduct point frequency in total testing . Auto-stop if non-conduct continuously occurred as setting frequency.
●　Loading tool (Patent) can control each compress accurately .
●　Three heads (fixtures) can work independently .
●　 Machine will stop at upper start point once reaches total frequency setting .
Connectors Testing: (Option)
●　With patented core-finding device for accuracy result in inserting/pulling force test.
●　 Check if it conducts in each inserting – pulling test.
●　Stop if non-conducted occurred.
Optional Accessories
●　Compression load calibrator. ●　Multifunction fixtures for connectors. (Accurately ground style)
●　Loading tool (test head) ●　 Lifting fixture for connectors.
●　Core-finding device for connector. ●　Small X-Y table .
Model 5701 5703
Stroke range 0-30mm
Speed range 6-30rpm or 60-300rpm
Tool Pressure

50-450gf , 100-1000gf(Option) , 200-2000gf(Option)
Frequency 999999(Max)
Dimension 320 (W)×470 (D)×960 (H)mm 790 (W)×470 (D)×960 (H)mm
Weight 50kg 90kg
Power AC 110V or 220V
