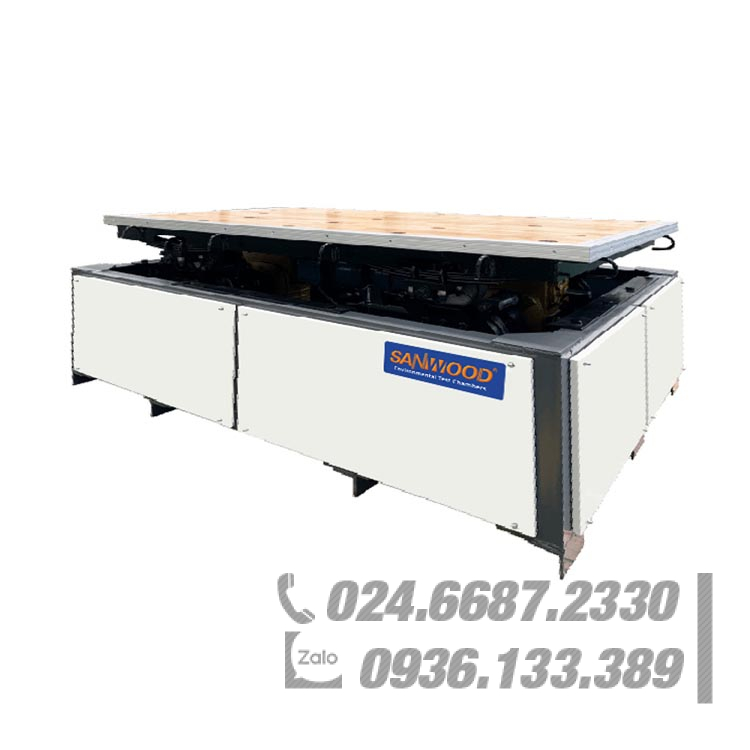

Hệ thống mô phỏng thử rung lắc xe vận chuyển SM13-200 SM13-300 SM13-600 SM13-1000 SM13-1500 SM13-3000 SM13-4000 SM13-6000 Transportation Simulation Test System

Hệ thống mô phỏng thử rung lắc xe vận chuyển SM13-200 SM13-300 SM13-600 SM13-1000 SM13-1500 SM13-3000 SM13-4000 SM13-6000 Transportation Simulation Test System

Transportation simulation test system is to simulate the actual road conditions such as shocks and vibrations during the transportation of various items of a specific load, and to evaluate the effect of the actual working conditions on the loading, unloading, transportation, packaging, sealing or internal structure of the goods. In order to assess or confirm the products and packaging.

Mã: 1208-14280 Danh mục:

Transportation simulation test system is to simulate the actual road conditions such as shocks and vibrations during the transportation of various items of a specific load, and to evaluate the effect of the actual working conditions on the loading, unloading, transportation, packaging, sealing or internal structure of the goods. In order to assess or confirm the products and packaging.

Features:

  • The method of subband approach is used to simulate broadband random vibration. Each subband contains a main natural frequency and meets the power spectrum of the subband. The vibration magnitude and running time of the test bench are consistent with the actual road spectrum.

  • Adopt truck chassis suspension technology, the acceleration factor can be adjusted;

  • AC variable frequency control;

  • No special foundation is needed, no other complicated operation or installation.

   Model SM13－200 SM13－300 SM13－600 SM13－1000 SM13－1500 SM13－3000 SM13－4000 SM13－6000
Parameters
Max. Load
(kg)		 200 300 600 1000 1500 3000 4000 6000
Vibration
Waveform		 Broadband Random
Instantaneous Probability
Density Function		 Approximately normal distribution
GRMS of
Acceleration (m/s2)		 3.2
Simulated Truck
Speed (km/h)		 20～60
Simulated
Pavement		 intermediate pavement in   tertiary highways & intermediate and low pavement in fourth highways
Acceleration
 Level		 1:01
Height of Specimen COG
(mm)		 ＜500 ＜600 ＜700 ＜700 ＜700 ＜1000 ＜1200 ＜1200
Working Table Size
(mm)		 1500×700 2000×1000 2200×1200 2700×1650 2700×1800 3200×2000 4000×2500 4000×2500
Consumption Power
(kVA)		 5 8 10 22 25 30 45 60
Overall Dimension
(mm)		 1700×850×950 2000×1500×950 2200×1500×950 2900×2200×1200 3000×2200×1300 3400×2600×1300 4450×2800×1600 4450×2800×1800
Weight (kg) 1600 2000 5500 6000 7000 7550 10000 12500
Power Supply three-phase 380V，50/60Hz
Working
Environment		 Temperature Range 0～40℃，humidity≤80%   (no condense)
Standards GB/T4857.15－89          QJ/T815.1-94          QJ/T815.2-94          GJB150.16-86
