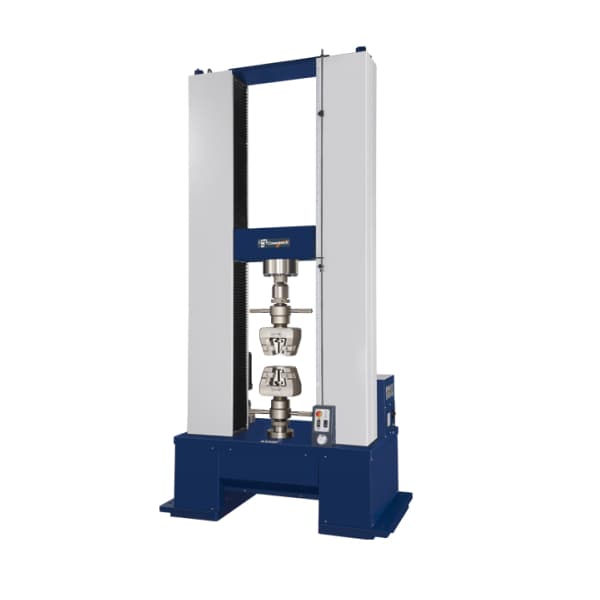

COMETECH QC-501M2F 502M2F 503M2F máy kiểm tra vật liệu
Confirm to ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228 Standard
This serial model is capable for the capacity that above 100KN test. QualifyASTM、ISO、JIS、GB standard with material and end product. High rigid frame structure and precise servo motor transmission parts supply that offer stable machine operation for our UTM. Suitable for plastic、Textile、Metal、Architecture industry.Also provide the quiet testing environment and high accuracy test result.
Go with Cometech specialist M2F testing software which is used Windows 7/8 of Person computer. It can do tensile test, compression test, bending test and all kind of tests. The software with multi-languages is very easy to operation. It also has all kind of metric units, real-time graphs and also provides complete analysis test data which finish test can do variety of material analysis.
The separation design of the UTM and the controller make the Maintenance lot easier in the feature. Effectively decrease the maintenance fee, also extend the life time of machine.
The speed of M2F system is capable for 0.0001-375mm/min to increase the testing range.And satisfy more standard requirement.
Industry：Plastic, Textile, Metal and Architecture.
Model501M2F502M2F503M2FMax. Capacity300 kN200 kN100 kNUnits
Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Force Resolution31 bitsForce Precision1/100,000Test stroke(w/o grip)1100 mmStroke resolution0.0001 mmSpace between columns550 mm(680mm,800mm optional)Speed range0.0001 ~ 330 mm/min0.0001~375 mm/minSpeed precisionHigh speed mode0.02 ~ 330 mm/min0.2 ~ 375 mm/minLow speed mode0.0001 ~ 1 mm/min0.0001 ~ 2 mm/minPC-PortRJ45(TCP/IP)(Connect software optional)Data sampling rate1200Hz (Max.)Hardware safety protectionupper limit, lower limit, emergency stop buttonMotor typeServo motorFeature
※Automatic reading of load cell feature information
※Automatic reading ofdisplacement sensor feature information
※force display, displacement display, time display, stress display and strain display
※External analog input (2-channel simultaneous reading of voltage or current)
※Test force automatically zero
※Test force self-defined calibration
※Break detection
※Automatic return
※Force overload protection
Power Supply3 phase200~240 VAC，30 A3phase200~240 VAC，20 ASignal phase 200~240 VAC, 10 ADimension of Machine145x66x235cm135x60x220cmWeight of Machine1250 kg1250 kg800 kg
