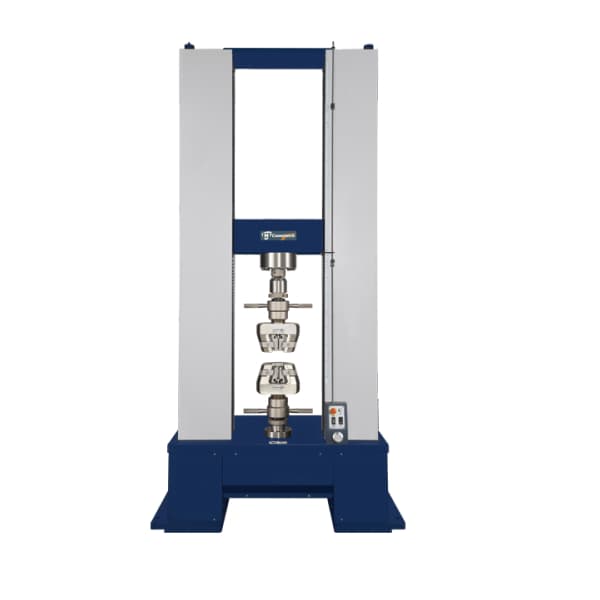

Máy thử nghiệm độ bền kéo (nén) COMETECH QC-50AM2F và QC-500M2F
Confirm to ISO 7500-1, JJG475-88 , ASTM E4 , DIN5122 , JIS B7721/B7733 , EN 10002-1,EN 1002-2,BS1610,GB228 Standard
This serial model is capable for the capacity that above 500KN test.It is design for tensile test, compression test, bending testand all kind of test. The UTM with high torque servo motor and high rigidity, high strength provide the motion and power. Effectively decrease the maintenance fee, also extend the life time of machine.It is suitable for Metal and Architecture industry. Also provide the quiet testing environment and high accuracy test result.
Go with Cometech specialist M2 testing software which is used Windows 7/8 of Person computer. It can do tensile test, compression test, bending test and all kind of test. The software with multi-languages is very easy to operation. It also has all kind of metric units, real-time graphs and also provides complete analysis test data which finish test can do variety of material analysis.
Standard equipped with sophisticated hand wheel which can be in precision position. The external signals can connect an external test signal function to expand to machine operating modes.
Industry：Plastic、 Textile、Metal and Architecture.
| Model | QC-50AM2F | QC-500M2F |
|---|---|---|
| Max. Capacity | 600kN | 500kN |
| Units | Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg |
|
| Force Resolution | 31 bits | |
| Force Precision | 1/100,000 | |
| Test stroke(w/o grip) | 1500mm | |
| Stroke resolution | 0.0001mm | |
| Space between columns | 550mm | |
| Speed range | 0.0002 ~ 330 mm/min | |
| Speed accuracy | High speed mode | |
| 0.02 ~ 330 mm/min | ||
| Low speed mode | ||
| 0.0002~2 mm/min | ||
| PC-Port | RJ45(TCP/IP) | |
| Data sampling rate | 1200Hz (Max.) | |
| Hardware safety protection | upper limit, lower limit, emergency stop button | |
| Motor type | Servo Motor | |
| Feature | ※Automatic reading of load cell feature information ※Automatic reading ofdisplacement sensor feature information ※force display, displacement display, time display, stress display and strain display ※External analog input (2-channel simultaneous reading of voltage or current) ※Test force automatically zero ※Test force self-defined calibration ※Break detection ※Automatic return ※Force overload protection |
|
| Power Supply | 3 phase 200V-240 V, 5A | |
| Dimension of Machine | 155 x 85 x 295 cm | |
| Weight of Machine | Around 2350kg |
