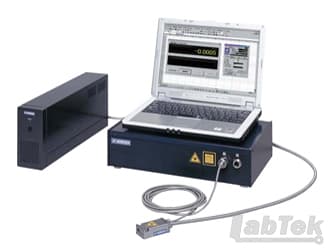

Máy đo bằng quang học DISTAX_300A Accretech
DISTAX_300A
Full Automation of Machine Tool Accuracy Inspection.
Feature
Specifications
| Model | 3 0 0 A |
|---|---|
| Maximum measuring range | Corner cube: 10 m, Plane mirror: 5m |
| Optical fiber length | 3 m, 5 m, 10 m standard |
| Resolution | Corner cube: 5nm, Plane mirror: 2.5nm |
| Maximum response speed | Corner cube: 630mm/s(Special order: 1000 mm/s) Plane mirror: 315mm/s |
| Accuracy | ±(Lx10-7+0.01×10-6)m L=measuring length(m) |
| Number of axes | 2 max. |
| Laser Head | |
| Light source | Stabilized wavelength single mode He-Ne laser |
| Light output | Approximately 0.3W (per axis) |
| Wavelength stability | ±1×10-7 |
| Number of optical axes | 3 max. |
| Warm-up time | Approximately 10 minutes |
| Input voltage (PS-300A power supply for laser head) |
Single phase AC 100V ±10% |
| Frequency 50/60Hz | |
| 3-pint AC plug | |
| Power consumption | 90 VA |
| Dimensions and weight | 160(W)x455(D)x116(H)mm 7.5kg |
| Usage environment | Temperature: 10°C to 40°C (±10C temperature variation during operation) Humidity: 10 to 90% (no condensation) |
| Counter Board | |
| Maximum response frequency | 2.0MHz |
| Reflection mirror movement speed |
Single path interference head: Approximately 630 mm/s (when basic resolution = λ/2 ) |
| Plane mirror interference head: Approximately 315mm/s (when basic resolution = λ/4 ) | |
| Maximum count | ±233-1 |
| Data output delay time | max.1μs |
| Number of axes | 1 axis/1 board |
| DISTAX Manager Software | |
| Number of measurement points | Up to 3 axes, measured sequentially |
| Connection to NC Unit | RS-232C |
| Types of NC units | FANUC 16, 18, 21 MELDUS 64 |
| Measurement/ output content |
Full compliance with ISO 230-2 (1988, 1997) Various positioning accuracy inspection items, including average reversing error Various graph outputs Formatted inspection report output |
| Correction | Pitch error and backlash error. (Automatic correction) |
| Functions required by NC controller |
Programmable parameters (required for automatic correction) Tape operation mode (required for automatic operation of NC from a PC using G-codes) (If this mode is not available, the NC can operate in the memory mode and automatic measurement can be performed using data from the DISTAX counter.) |
