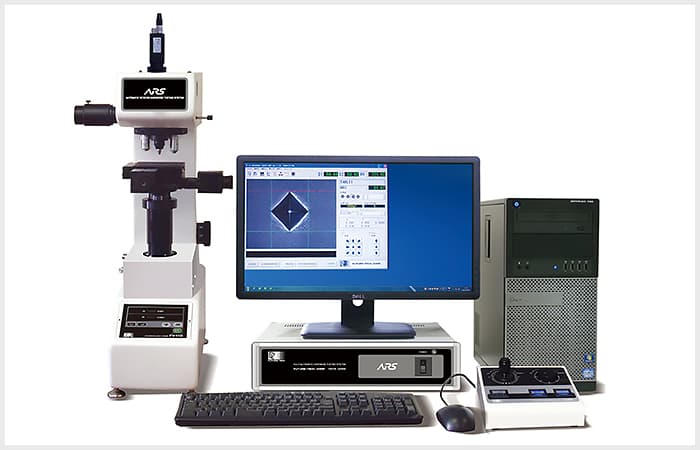

FV-ARS 9000

Most Advanced System with High-speed Sample Profile Memory Function.
High-speed,High-accuracy,High-repeatability,Easy-operation,Improved Read Power.
More Reliable for Large quantities of testing without human error.

• A series of measurement operations : Continuous Indentation～Focusing～Reading～Data Record :Just by selecting a measurement pattern, all testing will be fully-automatic with high speed.
• Various Measurement Patterns...
  • Intelligent Sample Profile Memory Function allows complicated Random measurements or Teaching Measurement along with the edge of specimen － Standard Function
  • Various Patterns can meet customers’ requirements : Straight Line / Zigzag / Circle /Arc / Line Set / Random / Matrix / Teaching / etc.

Teaching Pattern : 1 Line

Teaching Pattern : 3 Lines

MatrixPattern

• Capability of Reading unclear Indents on un-mirror surface has been improved by more advanced Data Processing Software

Mirror Surface

Etched Surface

Scratched Surface

• Various Data Output Format and Statistical Processing...

Display for Case Depth

Display for
Measurement Data

Display for Color Profile
Picture linked with Hardness
Values on Matrix Test Pattern

• Case Depth of indicated HV Hardness can be displayed instantaneously on the Chart after continuous Measurements on Carbonized Layer.
• Various Data Output available － Measurement Data, Hardness Distribution Chart, Case Depth, Max. Value, Min.
  Value, Mean Value, Dispersion, Standard Deviation, Coefficient of Variation, OK-NG Criteria, Conversion Data, etc.
• Display and Output Color Profile Picture linked with Hardness Values - Standard Function
