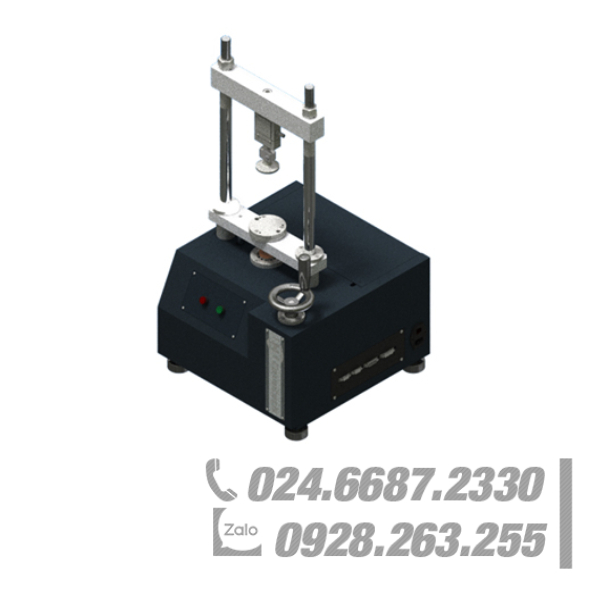

This tester is designed for small capacity spring tensile & compression tests, by manual way as power to do spring test. Its high rigidity, high strength frame structure is suitable to do metal, compound materials’ spring tests in high technology industries. Its light and small frame feature using together with notebook & laptop to become a device set easy to carry and can be placed in various locations.
This model is using special testing software-Rabbit which is use Windows 7/8 of personnel computer. It can do spring tensile & compression test. The software with multi-languages is very easy to operate. It also has all kinds of metric units, real-time graphs and also provides complete test data which can do complete analysis, intercomparison and save file functions after test.
Industry:Spring
| Model | QC-904 Manual Spring Tester |
|---|---|
| Max. capacity | 1kN |
| Force Precision | 1/10,000 |
| Test Stroke(w/o grip) | 150mm |
| Stroke resolution | 0.001 mm |
| Speed range | Manual |
| Speed precision | 0.005mm |
| PC-Port | TCP/IP |
| Data sample rate | Max. 100 Hz |
| Power Supply | Single phase 100~240V |
 |
A. Spring hook: For Tensile, three hooks sizes can be selected.
B. Compressive platen (dia.50mm): A platform for compression test. |
