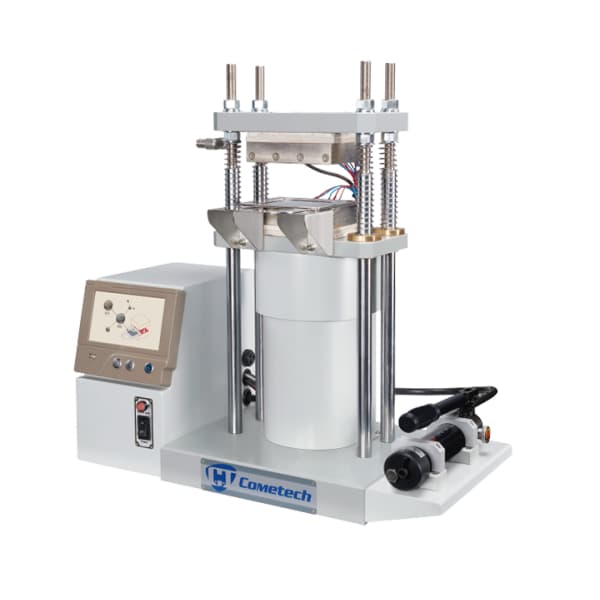

Cometech QC-677T Máy ép nhiệt bằng tay
Product Serial : QC-677T
Manual Thermo Molding Machine
This model is built to form raw materials into samples for testing or color matching. Automated molding steps: Put raw materials into molds then place it between compression heating plates to press the air out, heat up the material, and cool it down with water cooling system (optional). It can also be used for basis factory mass production. With our latest and interactive controller users can understand setting and process easily. Real-time data for force, time and temperature will be provided to users for instant control. And our various selections of data units can save users a lot of time from calculating.
| Model | QC-677T |
|---|---|
| Pressure(Tons) | 5、10 ton (optional) |
| Units | Temperature：℃、℉ Area：m2、cm2、mm2、ft2、in2 Energy：kgf、gf、tonf(long)、tonf(short)、lbf、ozf、kN、N、tonf(SI) Pressure：bar、kgf/cm2、KPa、MPa、mm-Aq(4℃)、psi |
| Temperature | Room temperature ~ 300℃ |
| Heating time | 50℃→150℃ take 18mins |
| Cooling time | 150℃→60℃ take 10mins |
| Cooling method | Water cooling system |
| Size of heating- plate | 15x15cm |
| Distance between heating plate | 60~80 mm (Adjustable) |
| Accessories | Sample mold*1 (Dimension:10x10x0.2 cm) |
| Control | 7” touch screen |
| Display | Instant feedback on force and temperature |
| Power | Single phase，220V/50Hz or 60Hz |
| Dimension | 69×35×75 cm(W×D×H) |
| Weight | 110 kg |
*Cometech reserves the right of final explanation on products.
