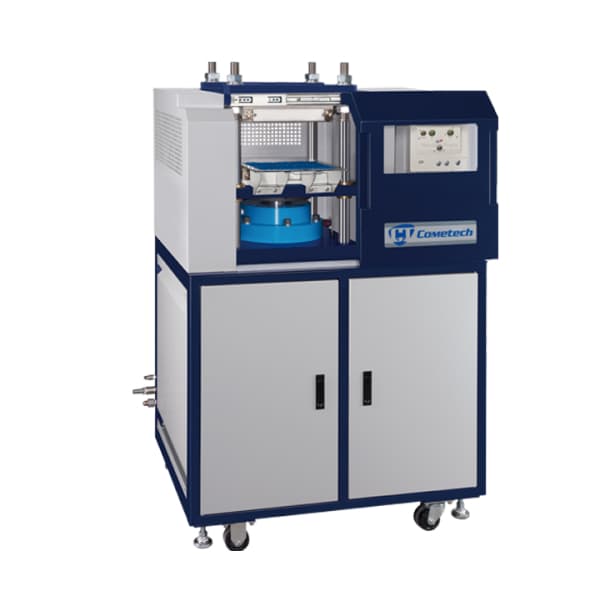

Cometech QC-674 Máy đúc nhiệt có thể lập trình tự động
QC-674 can provide stable press and heating to make plastic or rubber form by mold as the specimen, product produce and sample for development usage. It is equipped with touch controller, the interface is simple for setting and learning. QC-674 is able to support for 8-stage pressure and time procedure setting, this can make specimen forming be more even and reduce the bubble problem. It especially uses water cooling system to speed up the cooling time and improve the usage efficiency. The display can show the pressure and temperature curve graph for user to control the molding process’s force, time and temperature condition. For more multiple application , this machine can switch into manual mode. .
Applied Industry：Rubber, Plastic
| Pressure | 10、20、30、50 ton (optional) |
|---|---|
| Units | Temperature：℃、℉Area：m2、cm2、mm2、ft2、in2
Energy：kgf、gf、tonf(long)、tonf(short)、lbf、ozf、kN、N、tonf(SI) Pressure：bar、kgf/cm2、KPa、MPa、mm-Aq(4℃)、psi |
| Temperature | Room temperature~ 300℃ |
| Size of heating plate | 30×30 cm (or designated) |
| Heating time | 50→150℃ take 18mins |
| Distance between heating plate | 150 mm (Max.) |
| Cooling method | Use cooling system to rapidly cool upper and lower mold |
| Cooling time | 150℃→60℃ 10mins |
| Steps can be set | Pre-press time, press time |
| Temperature can be set | Forming temperature, open mold temperature |
| Controller | 7” touch screen |
| Display | Instant energy, temperature, diagram |
| Protection | Full cover, emergency stop button |
| Dimension | 101×74×157 cm (W×D×H) |
| Weight | 680 kg |
| Power | 3 phase 220V/50 or 60HZ |
