Cometech QC-652S Máy đo chỉ số dòng chảy

Cometech QC-652S Máy đo chỉ số dòng chảy

Product Serial : QC-652S

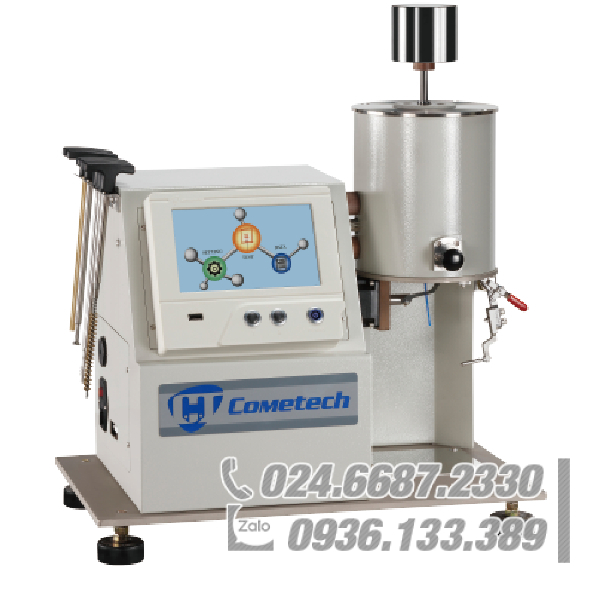

Melt Flow Index Tester
Confirm to ASTMD1238, D3364, ISO1133, GB- T3682 Standard
This tester can test thermoplastic melt mass flow rate(MFR) and melt volume flow rate(MVR), QC-652S build-in ISO/ASTM standards test methods, operative picture is adopted touch panel guided conversation style screen, user can precisely and smoothly to proceed with test, build-in analysis function and with flash drive save function.

Optional accessories can be selected according to different materials properties, such as high flow materialblock mechanism or MVR displacement test mechanism to proceed with various tests.

Industry : Plastic

Mã sản phẩm: 1156-20270 Danh mục:

Use temperature 50~360℃
Test Temperature, T Maximum allowable deviation from required test temperature
At (10±1) mm above the top surface of the standard die From (10±1) mm to (70±1) mm above the top surface of the standard die
125 ≦ T ＜250 ±1℃ ±2℃
250 ≦T＜300 ±1℃ ±2.5℃
300 ≦T ±1℃ ±3℃
Counter accuracy ±0.01s
Piston push rod weight 100g
Automatic cut Interval time 1-300 seconds can be set
Heater size 9.55±0.01mm
Hole mold 2.095±0.005mm
Counter weight Stainless steel 1100g、2060g、3700g、4900g、9900g、12400g、19900g、21500g(Optional) (rod weight 100g)
Accessories Cleaning brush、measuring cups、funnel and Die calibrationplug gauge
Weight 30 kg (40kg with MVR part)
Dimension 47x38x48cm
Optional High MI value material blockmechanism, MVR test mechanism.

?

  • Cometech reserves ultimate modification right of product specification.
