Product Serial : QC-633

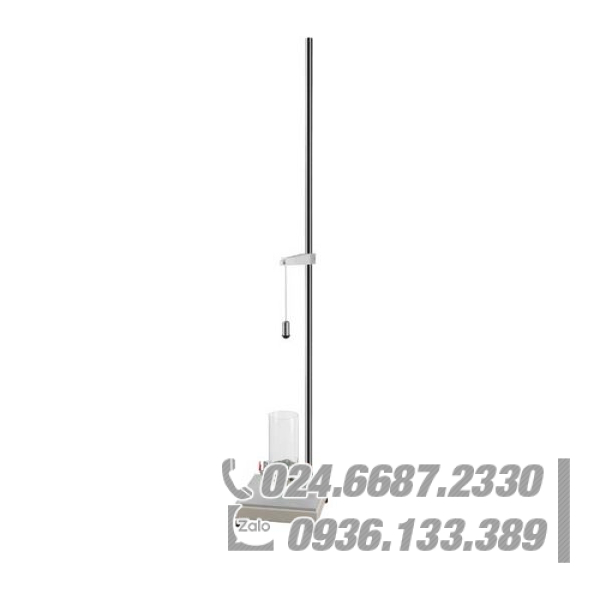

Manual Drop Dart Impact Tester
Confirm to ASTM D1709 GB-9639 Standard

This tester conforms to test standard applicable for method A and method B. Clamp the plastic film on a round specimen holder (dia. 127mm). The impact head used in method A is dia. 38.1mm and in method B is dia. 50.8mm. The dart is fixed top the tester. After a desired dart is selected and height is adjusted, release the dart with the electronic magnet. Film’s resistance to impact can thus be tested. Generally, 1 specimen is tested at a time and after 20 tests, record height and dart weight under broken and unbroken conditions for every test. This serves as a reference for the film’s resistance to impact.



Industry:Plastic

Mã sản phẩm: 1156-20390 Danh mục:


Method A:

Testing height 66公分 (26”)
Impact head’s diameter Ø38.1mm
Impact head’s material Fiber-reinforced plastic
Dart’s stick material Stainless steel
Weight of Impact head and dart’s stick 50 ± 2 g、115 ± 2g
Weights 5gx10、15gx10、30gx8、60gx8、120gx8
Tester weigh 1995g
Specimen holder Inner diameter Ø127mm, outer diameter Ø147mm

Method B:

Testing height 152.4公分 (60”)
Impact head’s diameter Ø50.8mm
Impact head’s material Stainless steel
Dart’s stick material Stainless steel
Weight of Impact head and dart’s stick 300 ± 5 g、360 ± 5g
Weights 15gx2、45gx8、90gx8、180gx3
Tester weigh 2010g
Specimen holder Inner diameter Ø127mm, outer diameter Ø147mm
