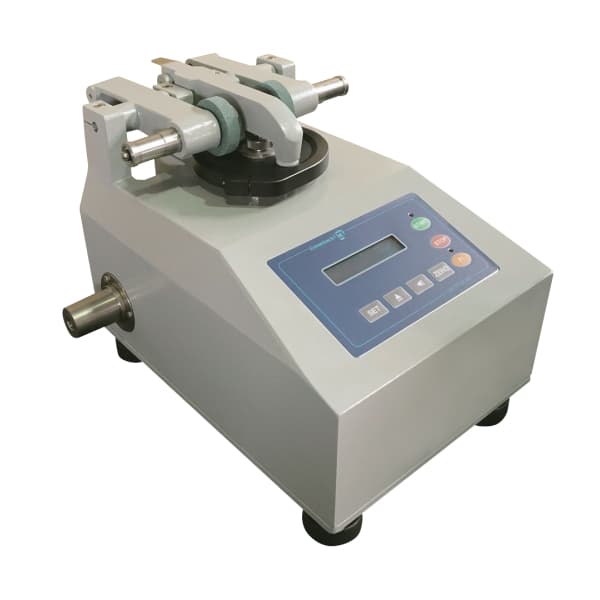

COMETECH QC-619K Máy kiểm tra mài mòn TABER
Confirm to ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, TAPPI T476, SIO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K 6964, DIN 52347, DIN53109, DIN53754, DIN 53799 Standard
QC-619K is made up of one specimen clamping disk and two grinding wheels and two vacuum nozzles, specimen clamps above disk with two wheels that can select different weights on specimens, grinding wheel diameter around 50mm, width around 13mm. Set test revolution for machine working, the nozzles will suck abrasion dust during test. Measuring specimen weight difference before and after test as specimen wear resistance properties also can be evaluated by naked eye or measure specimen thickness methods to see wear resistance condition , this machine is suitable for specimens of paper, cloth, plywood, carpet, glass, rubber and plastic materials, etc
Applied Industry: Rubber, plastic, textile, cloth, paper, construction materia
| Model | QC-619K |
|---|---|
| Model | Diameter 2 inch，thickness 1/2 inch |
| Model | 1~100 rpm, adjustable (Factory setting 60RPM) |
| Model | 250g、500g、1000g |
| Counter | Digital display, 1-99,999,999 with auto-stop |
| Sample size | Diameter: Ø110mm,center hole Ø7.5mm |
| Thickness: 1 ~ 6mm, soft and rigid material are all available | |
| Accessories | Vacuum cleaner(single-phase 110V or 220V, indicated), specimen cutter(1 pc), Wrench(1 pc), sand paper(10 pieces), specimen fixed frame(1 pc) |
| Power | Single phase 100 ~ 240V |
| Dimension | 55 × 38 × 47 cm |
| Weight | 30 kg |
