    Product Serial : QC-551

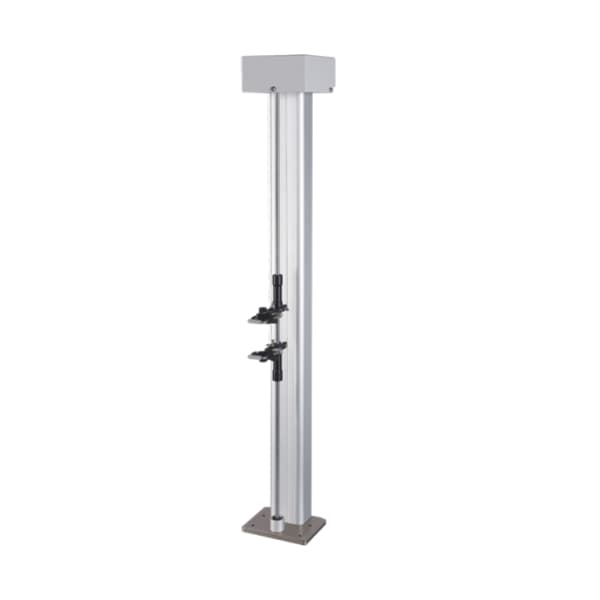

    Long Extensometer

    Long extensometer is suitable for higher than 20% of elongation of rubber, plastic, PE, fabric, webbing of material which are high elongation measurement accessories. The specimen usually made dumbbell-shape. The extensometer can link with Cometech machine and auto-detect the deformation of the test piece during the test.

    Mã sản phẩm: 1156-21150 Danh mục:

    Model QC-551
    Type S: standard L: extended
    Resolution 0.025mm
    Test stroke 700mm 1100mm
    Gauge length 10～50mm
    Thickness of specimen 0.2～6mm
    Signal A B phase signal
    installation Fixed or evolvable type

    Bạn cần hỗ trợ về s.phẩm?

    Call 024-6687-2330

      Feature:

    • 1. It can clamp on the specimen to do break action and do not need to dismantle the extensometer for convenience to use.
    • 2. It can be repair & maintenance and do not need to re-purchase new one when the extensometer has problem.
