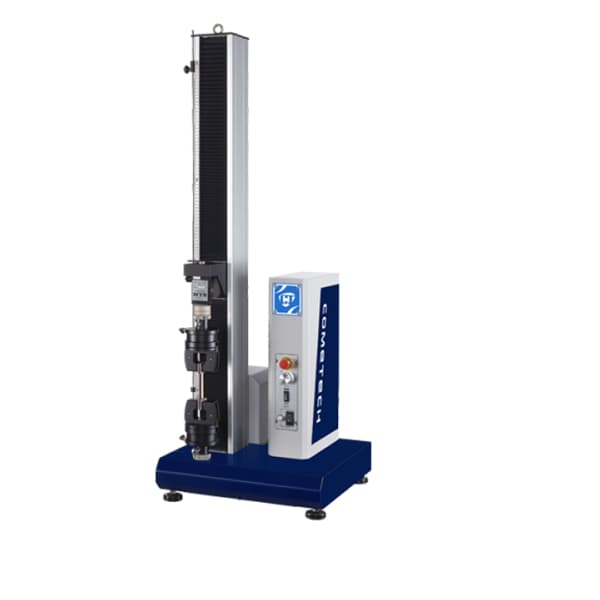

COMETECH QC-548M1F Máy kiểm tra độ bền kéo (nén) được vi tính hóa
Product Serial : QC-548M1F
QC-548M1F-Computerized Tensile (compression) Testing Machine
Confirm to ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228 Standard
Confirm to ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228 Standard
One column type has a better design of the machine volumn and and operation. The machine adopt servo motor and high precise ball screw. QC-548M1F is suitable for the test force below 5kN. User can base on the specimen length and elongation to choose the machine stroke. We can provide complete planning for grips to test with different test methods.The dedicated software for M1F can be installed under Windows7/8/10, it is avaliable for tensile, compression, bending, peeling, constant tensile or compression tests and so on. The software is quite user friendly and easy to learn, it can support different unit(imperial or metric), real-time curve graph display and provide complete data analysis function. All the report can be adjust, full analysis or save after finish the test. User can choose the optional display for stand alone operation to have a quick test. Industry:Rubber, Plastic, Paper, Textile, Metal, Wood, Tape, Electric, Package, Medical, Construction
| Model | QC-548M1F-S | QC-548M1F-M |
|---|---|---|
| Max. Capacity | 5 kN | |
| Units |
Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg |
|
| Force Resolution | 31 bits | |
| Force Precision | 1/50,000 | |
| Test Stroke(w/o grip) | 400 mm | 800 mm |
| Stroke Resolution | 0.0001 mm | |
| Speed Range | 0.2 ~ 2000mm/min (digital type setting) | |
| Speed Accuracy | Lower 1% | |
| Data Sampling Rate | Max.400Hz | |
| Space Between Columns | 80 mm | |
| PC-Port | RJ45(TCP/IP) | |
| Motor Type | Servo Motor | |
| Rigidity | 4.1 kN/mm (Vertical Rigidity) | |
| Power Supply | Single Phase, 200 ~ 240VAC，5A | |
| Dimension | ||
| Weight | 65 kgf | 80 kgf |
