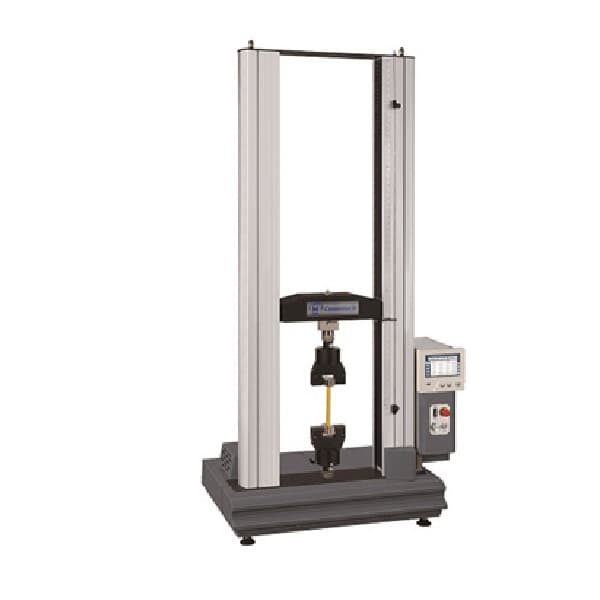

COMETECH QC-546M2F (20kN) Máy kiểm tra vật liệu
Confirm to ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228 Standard
QC-546M2F has large test space and long stroke, the maximum test capacity is 20 kN.Maintenance-free transmission mechanism to reduce machine maintenance problems and in the same time it provides a quiet test environment and high-precision test results. The machine has single-separated electric control box, separate electronic control system to avoid interference with the transmission components to increase test stability and also conducive to the maintenance and updating of electronic systems.
Supportprecisionjogwheel can befine tuning machine movement, with precision positioning and accurate calibration to increase test accuracy. High-speed signal feedback mechanism can reduce the chance of machine overload. The reserved external signal can be connected to an external signal source, increasing machine control mode.
Industry：Rubber, Plastic, Paper, Textile, Metal, Wood, Tape, Electron, Package, Medical, Architecture
| Model | QC-546M2F | QC-546M2F extended |
|---|---|---|
| Max. Capacity | 20kN | |
| Units | Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg |
|
| Force Resolution | 31 bits | |
| Force Precision | 1/100,000 | |
| Test stroke(w/o grip) | 850mm | 1250mm |
| Stroke resolution | 0.0001mm | |
| Cantilever distance | 425 mm | |
| Speed range | 0.0002 ~ 1000 mm/min adjustable（Set up by computerized） | |
| Speed accuracy | High speed mode | |
| 0.05 ~ 1000 mm/min | ||
| Low speed mode | ||
| 0.0002~3 mm/min | ||
| PC-Port | RJ45(TCP/IP)(Connect software optional) | |
| Data sampling rate | 1200Hz (Max.) | |
| Hardware safety protection | upper limit, lower limit, emergency stop button | |
| Motor type | Servo Motor | |
| Stiffness Slop | 1585kgf/mm | |
| Feature | ※Automatic reading of load cell feature information ※Automatic reading ofdisplacement sensor feature information ※force display, displacement display, time display, stress display and strain display ※External analog input (2-channel simultaneous reading of voltage or current) ※Test force automatically zero ※Test force self-defined calibration ※Break detection ※Automatic return ※Force overload protection |
|
| Power Supply | Single phase 200V-240 V, 5A | |
| Dimension of Machine | 98 x 57 x 148 cm | 100 x 58 x 190 cm |
| Weight of Machine | 145kgf | 170kgf |
