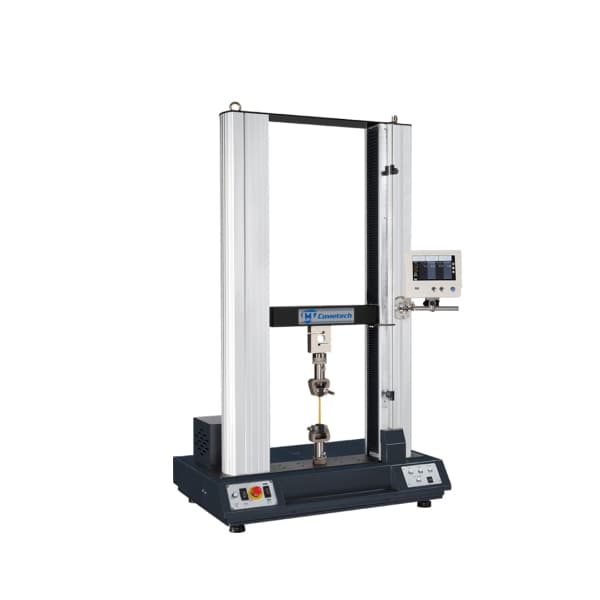

COMETECH QC-506D2 Máy kiểm tra đa năng
Product Serial : QC-506D2 (20kN)
QC-506D2 Universal Testing Machine
Confirm to ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228 Standard
Confirm to ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228 Standard
Description
506D2 is a double column, table-top universal testing machine with max capacity of 20kN. It has a larger testing area, which provide greater capability to customize test environment based on users’ needs.
Users can conduct the test directly or using D2 software on computer with Windows 7 or above. D2 can perform tensile, compression, bending, peeling and some other tests.
With multiple languages, both Metric and Imperial units, D2 is very easy to learn and convenient to use. It can also display test graph instantly. With various of analysis providing, users can analyze their test result better and generate test report with our software.Applicable Industry:
Rubber, Plastic, Paper, Textile, Metal, Wood, Tape, Electronics, Packaging, Health Care, and Construction Industry
506D2 is a double column, table-top universal testing machine with max capacity of 20kN. It has a larger testing area, which provide greater capability to customize test environment based on users’ needs.
Users can conduct the test directly or using D2 software on computer with Windows 7 or above. D2 can perform tensile, compression, bending, peeling and some other tests.
With multiple languages, both Metric and Imperial units, D2 is very easy to learn and convenient to use. It can also display test graph instantly. With various of analysis providing, users can analyze their test result better and generate test report with our software.Applicable Industry:
Rubber, Plastic, Paper, Textile, Metal, Wood, Tape, Electronics, Packaging, Health Care, and Construction Industry
| Model | Standard - QC-506D2 | Height Extend - QC-506D2 |
|---|---|---|
| Capacity | 20 kN | |
| Load cell resolution | 23 bits | |
| Load cell accuracy | 1/10,000 | |
| Test stroke | 800 mm | 1200 mm |
| Displacement resolution | 0.001 mm | |
| Cantilever distance | 425 mm (550mm、680mm、800mm可依需求選購) | |
| Speed Range | 25~650mm/min (digital type setting) | |
| Min speed | 25mm/min at 1000kg 45mm/min at 2000kg |
|
| Connect to PC through | TCP/IP port with software cable provide upon purchase | |
| Data sampling rate | Max 400Hz | |
| Hardware protection | Upper and lower limit switches and emergency stop button | |
| Power source | DC motor | |
| Rigidity | 1484 kgf/mm | |
| Feature | ※Plug and play interface accessories for quick installation. ※Signal I/O and test space is preserved for expansion if needed in future. |
|
| Power Phase | 110 / 220VAC，5A | |
| Dimension | 86 × 60 × 150 cm | 84 x 60 x 195 cm |
| Weight | 145 kg | 190 kg |
