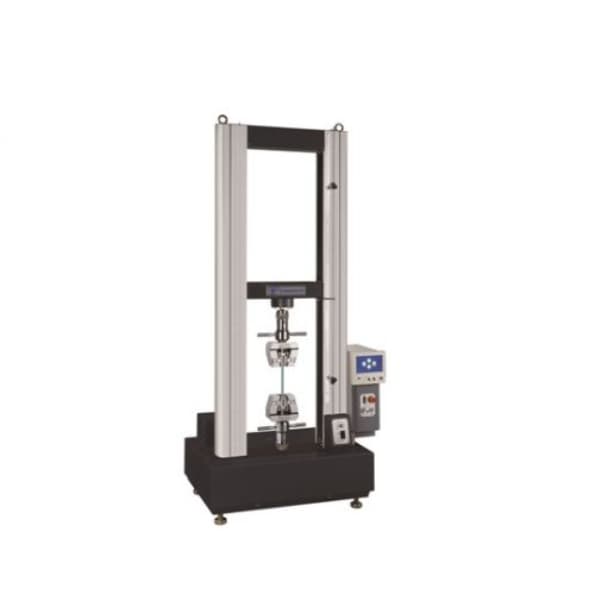

COMETECH QC-505M1F (50kN) Máy kiểm tra độ bền kéo (nén) được điều khiển bằng máy tính
Confirm to ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228 Standard
Floor type machine have two testing spaces, the maximum test capacity is 50 Kn. With high rigidity structure and Maintenance-free servo motor drive components, can provide stable operation of the machine.
Standardized design of the machine can collocate a variety of accessories for different types of testing. Also provide the quiet testing environment and high accuracy test result.
Go with Cometech specialist M1F testing software which is used Windows 7/8/10 of Person computer. It can do tensile test, compression test, bending test and all kind of tests. The software with multi-languages is very easy to operation. It also has all kind of metric units, real-time graphs and also provides complete analysis test data which finish test can do variety of material analysis.
Industry:Plastic, Textile, Metal and Architecture
| Model | QC-505M1F |
|---|---|
| Max. capacity | 50 kN |
| Units | Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg |
| Force Resolution | 31 bits |
| Force Precision | 1/50,000 |
| Test stroke(w/o grip) | 1100mm |
| Stroke resolution | 0.0001mm |
| Space between columns | 420mm(550mm、680mm、800mm Optional) |
| Speed range | 0.2~ 600mm/min（Can be set by computer digital） |
| PC-Port | RJ45(TCP/IP)[Software Optional] |
| Data sampling rate | Max. 400Hz |
| Hardware safety protection | upper limit, lower limit, emergency stop button |
| Motor type | Servo Motor |
| Feature | ※Automatic reading of load cell feature information ※Automatic reading ofdisplacement sensor feature information ※force display, displacement display, time display, stress display and strain display ※External analog input (2-channel simultaneous reading of voltage or current) ※Test force automatically zero ※Test force self-defined calibration ※Break detection ※Automatic return ※Force overload protection |
| Power Supply | Single phase 200 ~ 240VAC，8A |
| Dimension of Machine | 90× 60 × 195 cm |
| Weight of Machine | 280 kg |
?
