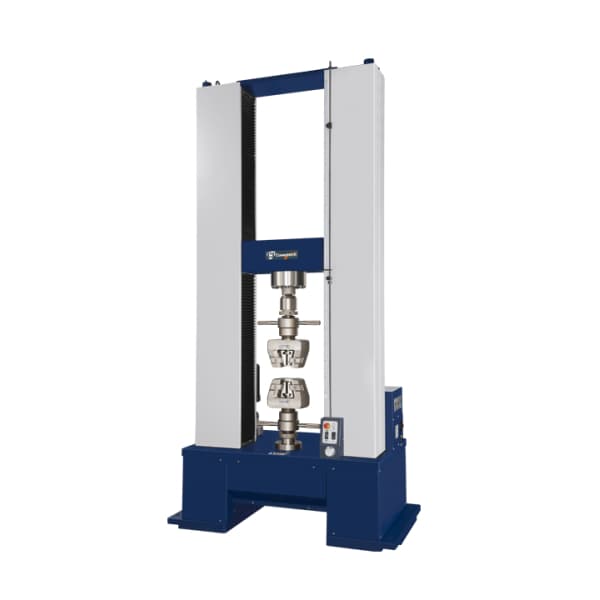

COMETECH QC-501M1F 502M1F 503M1F Máy kiểm tra độ bền kéo (nén) được điều khiển bằng máy tính
Confirm to ISO 7500-1, JJG475-88, ASTM E4, DIN5122, JIS B7721/B7733, EN 10002-1, EN 1002-2,BS1610, GB228 Standard
This model is capable for the capacity that above 100KN test. Qualify ASTM、ISO、JIS、GB standard with material and finished product. Use servo motor with high precision reduction mechanism transmission. The structure with high rigidity, high strength which is more stable during testing can reduce machine wear.
It is suitable for Metal, Composites and Architecture industry. Also provide the quiet testing environment and high accuracy test result. Have 7 inch TFT touch screen for optional, can stand-alone to processing test. Support precision hand wheel to control the movements of the machines. Use precision positioning and the calibration of machines is more convenient to user. Also, could reduce overload situation. The test speed range is capable for 0.2-375mm/min. And satisfy more standard requirement.
Industry:Plastic, Textile, Composites, Metal, Architecture.
?
| Model | QC-501M1F | QC-502M1F | QC-503M1F |
|---|---|---|---|
| Max. capacity | 300 kN | 200 kN | 100 kN |
| Units | Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg |
||
| Force Resolution | 31 bits | ||
| Force Precision | 1/100,000 | ||
| Test Stroke (w/o grip) | 1100 mm | ||
| Stroke resolution | 0.0001 mm | ||
| Space between columns | 550 mm(680mm, 800mm Optional) | ||
| Speed range | 0.2~330 mm/min (Can be set by computer software ) | 0.2~375 mm/min (Can be set by computer software) | |
| PC-Port | RJ45(TCP/IP)[Software optional] | ||
| Data sampling rate | Maz.400Hz | ||
| Motor type | Servo Motor | ||
| Feature | ※Automatic reading of load cell feature information ※Automatic reading of displacement sensor feature information ※force display, displacement display, time display, stress display and strain display ※External analog input (2-channel simultaneous reading of voltage or current) ※Test force automatically zero ※Test force self-defined calibration ※Break detection ※Automatic return ※Force overload protection |
||
| Power Supply | 3 phase 200~240VAC，30 A | 3 phase 200~240VAC，20 A | Single phase 200~240 VAC, 10 A |
| Dimension of Machine | 140 x 66 x 235cm | 120 x 60 x 220cm | |
| Dimension of Machine | 1250 kg | 800 kg |
