Cometech M2F BỘ ĐIỀU KHIỂN M2F
Product Serial : M2F

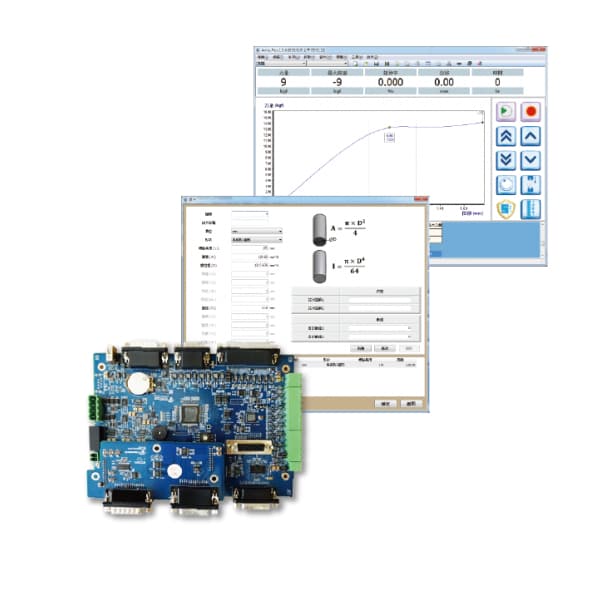

M2F CONTROLLER
Description:
M2F controller is advanced and multiple planning controller for material testing, which can analyze load cell, torque sensors, pressure sensors, encoder and so many varieties of signals.Every kind of units can be changed according to user’s demand when using it. It has real-time display or record process data in short time , data can be restored through USB port and exported to EXCEL sheet for further analysis by USB. Specified software can be an option for proceeding with further analysis and also open for users to write their own software. When customer has a special requirement, it also could be modified to new planning based on their needs.
M2F controller is advanced and multiple planning controller for material testing, which can analyze load cell, torque sensors, pressure sensors, encoder and so many varieties of signals.Every kind of units can be changed according to user’s demand when using it. It has real-time display or record process data in short time , data can be restored through USB port and exported to EXCEL sheet for further analysis by USB. Specified software can be an option for proceeding with further analysis and also open for users to write their own software. When customer has a special requirement, it also could be modified to new planning based on their needs.
Appropriate using occasion:
Simple material testing device, various forces display, teaching analysis, data measurement for industries
| Model | M2F Series |
|---|---|
| Power force(DC) | 5V and 12V (50W) |
| Control signal input | Four sets of input signal for selection Two sets of stress sensor: 4~20mA Two force sensor: 1.0mV/V, 1.5 mV/V, 2.0 mV/V, 3 mV/V, 4 mV/V |
| (Internal + External) Four sets of Encoder signal input | |
| Input signal: upper limit, lower limit, emergency stop, goes up, go down, set aside two sets. | |
| Expand D-Sub | Input signal: 4 sets, output signal: 4 sets |
| Communication Interface | TCP/IP RJ45 Connecting Cable |
| Load cell Resolution | 31 bits |
| Load cell precision | 1/10,000 |
| Encoder signal voltage | 5V |
| Encoder signal mode | Single-ended (Open Collector)、differential square wave(Line Driver) |
| Display panel | 7 inche of TFT Color touch panel |
| Language selection | Chinese, English, Japanese |
| Data assess | Can use USB to proceed with data access (can export test data to Excel for further data analysis) |
| Specified software is optional for data access | |
| Data sampling rate | 2, 5, 10, 25, 50, 100, 400, 1200Hz |
| Interface function | Data display: Force , Stress, Torque, Displacement, Time |
| Graph display : Force, Displacement, Time, Stress, Strain | |
| Date Analysis : Maximum force, deformation percentage at maximum force point, stress at maximum force point, percentage of elongation at maximum force point, force at break point, deformation percentage at break point, stress at break point, percentage of Elongation at specified break point, interval average load, Max. Force and so on. | |
| Unit changeable (Metric system or imperial system) | |
| Calibration setting | Calibrated parameter setting can be provided |
| Can be used on various capacity of load cell and no need to recalibration after replacement. |
