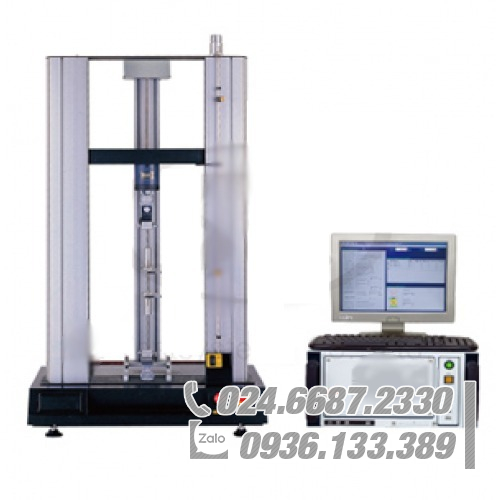

Máy kiểm tra kéo nén vật liệu đa năng 7100S, 7200S, 7500S, 7900S / Universal Material Tester 7100S, 7200S, 7500S, 7900S

Máy kiểm tra kéo nén vật liệu đa năng 7100S, 7200S, 7500S, 7900S / Universal Material Tester 7100S, 7200S, 7500S, 7900S

This model is used for tension, compression, bending cutting adhesion, and peeling force tests in metal, electric materials, rubber, plastic, leather, fabric and packing materials…etc.

Mã sản phẩm: 1211-10430 Danh mục:

This model is used for tension, compression, bending cutting adhesion, and peeling force tests in metal, electric materials, rubber, plastic, leather, fabric and packing materials…etc.

Test items
●　Load-stroke test ●　Load-time test
●　Load-extension rate test ●　Stress-strain test
Testing Info
●　Max. Loading ●　Extension rate
●　Yield point ●　Break point
Features
●　Windows Chinese version pictures. Easy to operate .
●　The test conditions are stored and programmed by computer pictures. (Select from list or input figures directly for setting. )
●　Record each active load-distance curve variation diagram directly.
●　Steel structure with servo motor, high accuracy and long lasting .
●　Selectable units of N, lb, gf, and kgf.
●　Load cell over-load protection against damage .
●　Direct printout and storage of the diagrams. (Load-distance curve and test report)
●　The test report can be output automatically (printout), transferred into other files or output through network directly.
Model 7100S 7200S 7500S 7900S
Capacity 1000kgf 2000kgf 5000kgf 10000kgf
Resolution 0.1kgf 0.1kgf 1kgf 1kgf
Units gf,kgf,N,lb (selectable)
Max. Stroke 800mm
Min. Stroke 0.01mm,0.001mm(Opition)
Drive motor Servo motor
Column lnterval 400mm 500mm 550mm
Dimension 850 (W)×580 (D)×1510 (H)mm 930 (W)×490 (D)×2000 (H)mm 1080 (W)×490 (D)×2180 (H)mm
Weight 130kg 250kg 750kg
Power AC 110V or 220V
