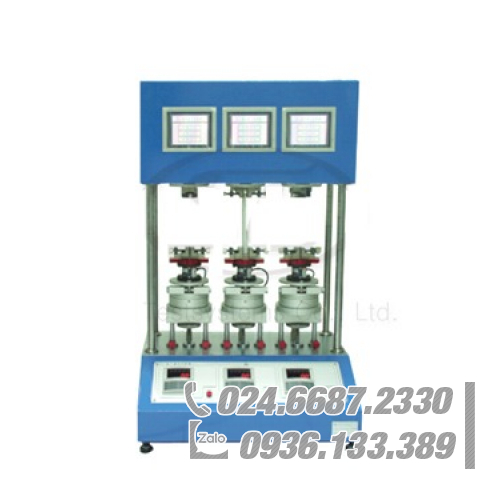

Máy kiểm tra độ bền xoắn tự động cho thiết bị điện tử 5903T / Auto Torsion Durability Tester 5903T

Feature

●　Display each torque value and setting stop value, working with accuracy testing device. ( torque load cell 200 kgf and torque monitor)

●　Test conditions are programmed by touch panel ,make more fast and convenience. (Rotating Speed ,Pause Time ,Testing Frequency)

●　Torque Buffer Device make precise stopping of torque setting value.

●　Three axes independent control system make testing individually.

●　Japanese servo motor driving with correct position , strong torque and long life.

●　Torque testing range : Max. 200kgf , Resolution 0.1kgf , Accuracy 0.5%.

●　Angle testing range : unlimited , Resolution is 0.1.

●　Fixture height range: 80mm .

●　Machine will pause or return upon reaching setting Positive toque or Anti toque value.

●　Machine will stop automatically upon reaching setting testing frequency.

Touch monitor setting items

●　Frequency setting	●　Angle setting
●　Speed setting	●　Pause time setting

Load display setting items

●　Display prompt testing torque value.

●　Setting stopping of Positive & Anti torque.
