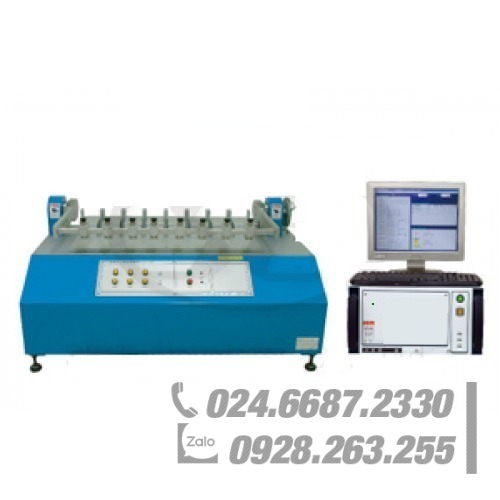

Máy kiểm tra độ bền đóng gấp (moment xoắn) của thiết bị điện tử, 8 khay 5308s / Auto Eight Hinges Torque Tester 5308S

Máy kiểm tra độ bền đóng gấp (moment xoắn) của thiết bị điện tử, 8 khay 5308s / Auto Eight Hinges Torque Tester 5308S

We research and develop WINKSA automatic testing software working with Windows 2000 system. Easy operation is applicable multifunction offering all your requirement , automatically test and count all kind of torques numbers as well .

Mã sản phẩm: 1211-10010 Danh mục:

We research and develop WINKSA automatic testing software working with Windows 2000 system. Easy operation is applicable multifunction offering all your requirement , automatically test and count all kind of torques numbers as well .

Features
●　input angle and speed in random and testing will be moved on automatically .
●　Computer will test and control automatically with Max. stroke input .
●　Test and output the diagrams of corresponding value of each stroke and torques .
●　Cross-shape cursor can trace the track of each test diagram, so as to determine the corresponding value of torques and angle .
●　 Diagrams storage and printing. (torque-angle curve, life curve and test report)
●　Data storage of hard disk. (without limit)
●　The test conditions are programmed by computer picture.(including test load, angle , speed , frequency and pause time…etc.)
●　The title of the test report can be revised at any time.(either in Chinese or in English )
●　Test report can be transferred to Excel file for editing or output through Network.
Model 5308S
Capacity 50kgf‧cm
Resolution 0.01kgf‧cm
Accuracy ±0.5%FS
Max. angle 180°
Max. speed 8000°/min
Max. width 68mm
Dimension 1000 (W)×640 (D)×800 (H)mm
Weight 150kg
Power AC 110V or 220V
