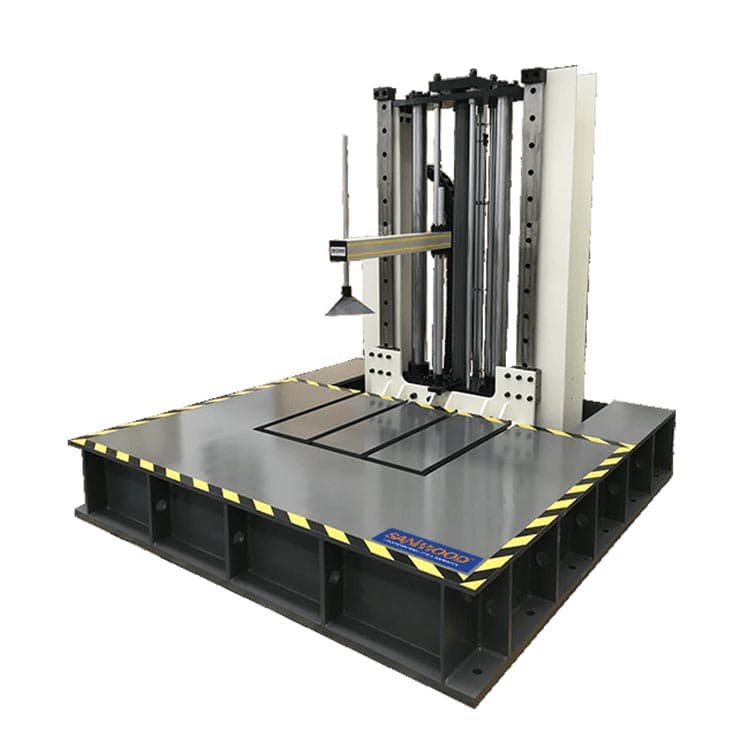

Hệ thống thử rơi va đập SM11-100 SM11-200 SM11-300 SM11-500 SM11-800 SM11-100 SM12-100 SM12-200Zero-distance Drop Test System

Zero-distance Drop Test System mainly simulates the resistance to drop and impact of large and heavy packaging products. Its strong power system and unique sample holder facilitate easy loading and unloading of oversized and overweight items and automatically rise to the setting. After the height, the drop test is completed. It can realize the drop test of the edge, surface and angle of the sample.

This equipment is mainly used to evaluate the ability of product or packaging to withstand drops during transportation and loading and unloading, so as to improve product and packaging design.

Features:

• Driven by pneumatic and servo motors, stable lifting process with upper and lower displacement restrictions, safe and reliable;

• Adopt single-track or dual-track lifting method, and the height can be adjusted arbitrarily;

• It can clamp and drop the test specimen in different directions such as edges, faces and angles;

• The testing machine adopts PLC full-automatic control, large size true color touch LCD screen,

• No special foundation required, no other complicated operation or installation;

• Remote control can be realized to ensure the safety of operators (customized functions).

Model	SM11－100	SM11－200	SM11－300	SM11－500	SM11－800	SM11－1000	SM12-100	SM12-200
Parameters
Max. Load  (kg)	100	200	300	500	800	1000	100	200
Drop Height (mm)	0～1200	0～1200	0～1200	0～1200	0～1000	0～1000	300～1500	300～1500
Max. Specimen Size  (mm)	1000×1000×1000	1200×1200×1200	1300×1300×1300	1500×1500×1000	1600×1600×800	1800×1800×600	1000×1000×1000	1200×1200×1200
Single Lift Drop   Zone Size（W*D/mm）	1000×1200	1000×1200	1000×1200	1200×1500			1200×1200	1400×1400
Double lift Drop   Zone Size（W*D/mm）	1700×1400	1700×1400	1900×1600	2000×1800	2200×1900	2300×2000
Test Mode	Face, Edge and Angle
Overall Dimension  (mm)	2000×1200×	2100×1200×	2200×1200×	2500×1500×			2000×1200×	2200×1400×
	2000	2200	2300	2500			2600	2800
Double lift Overall Dimension (mm)	2050×1400×	2050×1400×	2250×1600×	2350×1800×	2550×1900×	2650×2000×
	1615	1615	1615	1515	1400	1300
Weight (kg)	1700	1800	2000	2500	3000	3200	1500	2000
Consumption Power  (kVA)	1.5	2	3	5.5	7.5	11	2	3
Power Supply   for Tester	AC220V±10%，50Hz
Power Supply   for Air Source	AC220V±10%，50Hz，3kVA /AC380V±10%, 50Hz，5kVA
Air Source Conditions	The output pressure is no greater than 1.0MPa, and air compressor is needed to be configured if there is no air source in the lab.
Working Environment	Temperature range 0～40℃，humidity≤80% (no condense)
Standards	ISO2248-1985 (E)     IEC68-2-27
