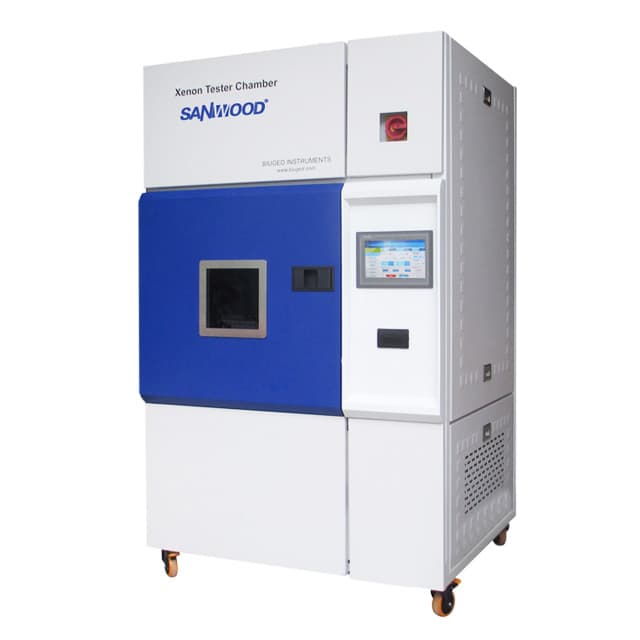

Buồng thử thời tiết đèn Xenon SM-Q-SUN
This realize the unattended touch screen menu operation control. The interface of touch screen menu operation control is friendly and convenient . The operator can set the test parameters arbitrarily and monitor the whole experiment process at any time. It is equipped with a high-precision Pt100 blackboard temperature sensor and black mark thermometer to monitor the blackboard temperature and black mark temperature of the sample room.
Xenon lamp test chamber Powerful functions and reliable test results
◆ Xenon lamp weathering test chamber Meet with all international standards of xenon test.
◆ Xenon Lamp Weathering chamber Equipped with ATLAS xenon arc lamp , filter and components, ensure to get high and same running parameters. Test results have a good reliability and repeatability comparing with import machines.
◆ Automatic rotating drum-type sample rack with three floors structuremaximizes exposure uniformity over all specimens
◆ 6,500cm exposure area , can hold different shapes and sizes samples.
◆ Can set the cumulative energy （total irradiance energy）obtained by sample to finish a test procedure.
◆ Advanced cooling system for xenon lamp and intelligent air system.
◆ Chinese or English operation window
Xenon lamp weathering test chamber Can set andcontrol automatically many test parameters
◆Xenon Lamp Chamber Irradiance energy can be set and accurately controlled（340nm or 420nm or 300nm～400nm）. The "Solar Eye" control system can monitor and automatically compensate the change of light intensity caused by ageing or other factors.
◆ Working room temperature, BPT（black panel temperature）and BST（black standard temperature）can be set and controlled automatically. With high precision Pt 100 temperature sensor, all these temperatures could be moitored accurately.
◆ Working room relative humidity can be set and controlled automatically. With ultrasonic wave humidifying system, the working room can obtain more stable and uniformhumidity distribution.
◆ Xenon lamp aging test chamber Can set spray way to sample（front spray orback spray）,spray time and spray interval time.
Xenon lamp weathering test chamber Simple, easy touse
◆ Xenon lamp weathering test chamber Colorful touch screen and user-friendly operation interface allow operator to set the test parameters and monitor it easily.
◆ The test procedures can be programmed freely; and up to 16 predetermined procedures can be saved in one time. Every procedure includes up to 10 segments setting data.
◆ With USB interface, operator can export any test parameters with Excel format at anytime, convenient to check B-SUN’s running status at any time.
◆ Pure（deionized）water machine is optional.With high purity water, operator can get a more reliable testing result，Chamber has alarm function for monitoring water.
Xenon lamp weathering test chamber Safe and reliable
◆ Xenon lamp weathering test chamber Many alarm protections：Big irradiance difference, water conductivity is over limits, too high temperature of cooling water, too low flow rate of cooling water, over-temperature, heating problem. B-SUN will stop running automatically and show the alarm information in the operation window.
◆ Can select TCP/IP Ethernet interface, the user can tele-control the machine through TCP/IPinternet.
Convenient to help customers to slove all problems and do some necessary after service
Xenon lamp weathering test chamber MainTechnical Parameters
| Ordering Information → | Xenon lamp weathering test chamber |
| Technical Item ↓ | |
| Xenon Lamp | 6.5 KW water cooling long arc xenon lamp |
| Light Filter | Import originally from ATLAS, can simulate indoor or outdoor sunshine spectrum |
| Exposure Area | 6,500 cm2 |
| Wave Length of Xenon Spectrum |
Can select 300-800nm（simulate sunshine，filtrate all wavelength under 300nm ）or 280-800nm （Add UV wave，keep some short-wave of UV） |
| Adjustable Irradiance | 0.3～1.5 W/ m2 (Single point of control: 340nm) |
| 0.5～2.7 W/ m2 (Single point of control: 420nm) | |
| 30 W/m2～150 W/ m2 (Full spectrum :from 300～400nm) | |
| Lifetime of lamps | 2,000 hours |
| Adjustable BPT | RT+20℃~110℃ |
| Temperature Stability | ±1℃ |
| Temperature Uniformity | ≤2℃ |
| Temperature Declination | ≤±1℃ |
| Adjustable Humidity | Light：10%-85% Dark：10%-95% |
| Rotate speed of sample | 1～7 r/min（circle as lamp centre） |
| Spray Function | Can set spray continuous time and spray period |
| Water demands | High purity deionized water（Conductivity<2us/cm） |
| Flow of Deionized Water | 0.2L/min |
| Overall Size | 1,200*1,200*2,000mm（L*W*H） |
| Weight | 850 KG |
| Optional Pure Water Machine | Size：620*650*1600（L*W*H） |
| Weight：120KG | |
| Structure | |
| Cabinet Material | Whole chamber is made up of good quality stainless steel （SUS304） |
| Chamber Door | Simple door to left with filter window；silicon rubber seal the door edge |
| Sample Crack |
Stainless steel material, its position in the chamber can be adjusted（up, middle or down） , Sample crack rotate around the centre of lamp |
| Controller | Siemens programmable controller. LCD touch-screen |
| Way of adding humidity | Add humidity by ultrasonic humidifier |
| Black panel thermometer | Heat insulate type black standard thermometer |
| Cooling System | Cooled by compressor and forced-air blast system |
| Security Protections And Error Protections | |
| Xenon Lamp Protection | Protection to cooling water for xenon lamp shortage. |
| Protection to big electric current to xenon lamp | |
| Protection to big irradiance deviation for a long time | |
| Water Shortage Protection | Water shortage, cooling water to lamp shortage, low flow rate of cooling water, water shortage when heating |
| Power Source Protection | Over-power, over-electric current, shortage phase and wrong phase sequence |
| Working Room Temperature Protect | Individual over-temperature protection of working room temperature. Over-temperature protection for BPT and BST |
| Pure System Protect | Monitor the conductivity of pure water at real-time（Once the conductivity≥2us/cm, the machine will stop and alarm） |
| Protection to Radiation | Xenon lamp will turn off automatically when opening the chamber door, in case xenon lamp radiate operator |
| Installing Environment Requirement | |
| Power Source | 380V土10% 3-phases 4 lines or 220V土10% 2-phase； |
| 50 or 60Hz；Max. electric current≥40A；Max. power is 8KW | |
| Air Outlet | There should be air outlet in the installation place to connect vent pipe |
| Standard Accessories | |
| Xenon Lamp---1 pc （Can select Atlas or other Chinese brand） Sensor---2 pcs （OSRAN） | |
| Xenon Lamp Filter---1 set （Can select Atlas or other Chinese brand） Simens Control System---1 set | |
| Human-computre Interface---1 pc （Touch Screen） Specimen Holders---65 pcs | |
| Black Panel Temperatrue Holders---2 pcs （include 2 PT 100） Irradiance Calibration Holder---1 pc | |
| Optional Accessories | |
| SM- 8171---Purity Water System（50L/min） SM- 8140---Radiometer（340nm）； | |
| SM- 8141---Radiometer（420nm）； SM- 8142---Radiometer（300～400nm）； | |
