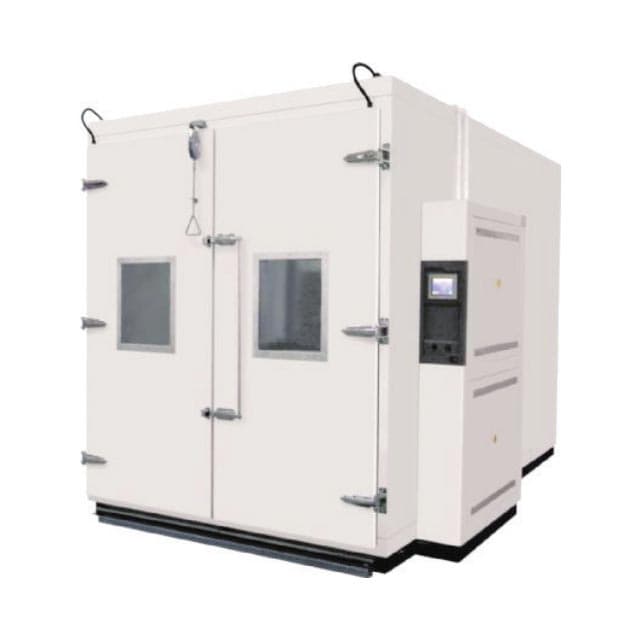

Buồng thử thuốc Walk-in Drug stability test chamber LHH-series

Walk-in Drug stability test chamber Product features:

● Imported color touch screen, language switch, 100 programs for setting, data display.

● Apply TMHM temperature and humidity adjusted method, running stable, accuracy control.

● Special air circulatory system, ensure the temperature and humidity even inside.

● Sophisticated security protection system.

● Data record and error detect. Printer or RS485 communication connector for use. Temperature and humidity time curve real-time recording.

● Anti-lock system, can walk in and out freely.

Walk-in Drug stability test chamber Execution and satisfying criteria:

Supported by the 2015 Pharmacopoeia drug stability test guidelines and GB/T10586-2006 relevant terms.

Walk-in Drug stability test chamber EU safety certificate:

EN55014-1:2006、EN-2:1997+A12001、

EN60335-1:2002+A2:2004+A11:2004+A12:2006、

EN60335-2-71:2003、EN61000-3-2:2006



Walk-in Drug stability test chamber Technical parameters:



Model		LHH-series
Inner volume		2m³~250m³(can be customized)
Performance	System	Balanced temperature and humidity control
	Temperature    control range	0～65℃
	Humidity    control range	40～95%RH
		(20%RH is possible when apply  the dehydrating unit)
	Temperature   fluctuation	±0.5℃
	Temperature deviation	≤±2.0℃
	Humidity deviation	±3.0%RH
	Heating up time	1～2℃/min
	Cooling time	0.5～1℃/min
	Refrigerating method	Dual compressor
Control   system
	Temperature   and humidity controller	Color LCD touch screen
	Operation menu	LCD display
	Operation mode	SV, PV
	Distinguishability	Temperature: ±0.1℃； Humidity: ±1%RH
	Input	Temperature: PT100; Humidity:    Capacitive sensor
	Control method	PID control
	Communication method	RS-485、RS-232C
Operation ambient temperature		+5～+35℃
Power supply		AC380 50HZ three-phase five-wire system



Remarks: Illumination board and illumination controller (Optional choice)

※Provide 3Q verification and calibration services(Optional choice):

※Provide the authority third party testing report in shanghai.(Optional choice)



Walk-in Drug stability test chamber Optional accessories:

1.   Wire alarm system;

2.    Illumination automatically detect and control;

3.    Wireless alarm system(SMS alarm system);

4.    UV sterilization system;

5.    Paperless recorder;

6.    SDR100 imported paperless recorder
