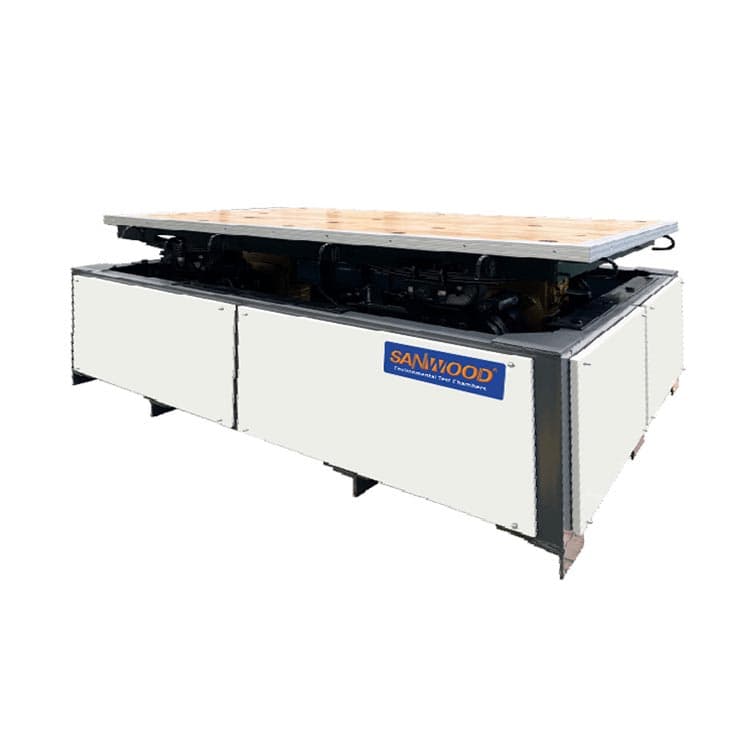

Hệ thống mô phỏng thử rung lắc xe vận chuyển SM13-200 SM13-300 SM13-600 SM13-1000 SM13-1500 SM13-3000 SM13-4000 SM13-6000 Transportation Simulation Test System

Transportation simulation test system is to simulate the actual road conditions such as shocks and vibrations during the transportation of various items of a specific load, and to evaluate the effect of the actual working conditions on the loading, unloading, transportation, packaging, sealing or internal structure of the goods. In order to assess or confirm the products and packaging.

Features:

• The method of subband approach is used to simulate broadband random vibration. Each subband contains a main natural frequency and meets the power spectrum of the subband. The vibration magnitude and running time of the test bench are consistent with the actual road spectrum.

• Adopt truck chassis suspension technology, the acceleration factor can be adjusted;

• AC variable frequency control;

• No special foundation is needed, no other complicated operation or installation.

Model	SM13－200	SM13－300	SM13－600	SM13－1000	SM13－1500	SM13－3000	SM13－4000	SM13－6000
Parameters
Max. Load (kg)	200	300	600	1000	1500	3000	4000	6000
Vibration Waveform	Broadband Random
Instantaneous Probability Density Function	Approximately normal distribution
GRMS of Acceleration (m/s2)	3.2
Simulated Truck Speed (km/h)	20～60
Simulated Pavement	intermediate pavement in   tertiary highways & intermediate and low pavement in fourth highways
Acceleration  Level	1:01
Height of Specimen COG (mm)	＜500	＜600	＜700	＜700	＜700	＜1000	＜1200	＜1200
Working Table Size (mm)	1500×700	2000×1000	2200×1200	2700×1650	2700×1800	3200×2000	4000×2500	4000×2500
Consumption Power (kVA)	5	8	10	22	25	30	45	60
Overall Dimension (mm)	1700×850×950	2000×1500×950	2200×1500×950	2900×2200×1200	3000×2200×1300	3400×2600×1300	4450×2800×1600	4450×2800×1800
Weight (kg)	1600	2000	5500	6000	7000	7550	10000	12500
Power Supply	three-phase 380V，50/60Hz
Working Environment	Temperature Range 0～40℃，humidity≤80%   (no condense)
Standards	GB/T4857.15－89          QJ/T815.1-94          QJ/T815.2-94          GJB150.16-86
