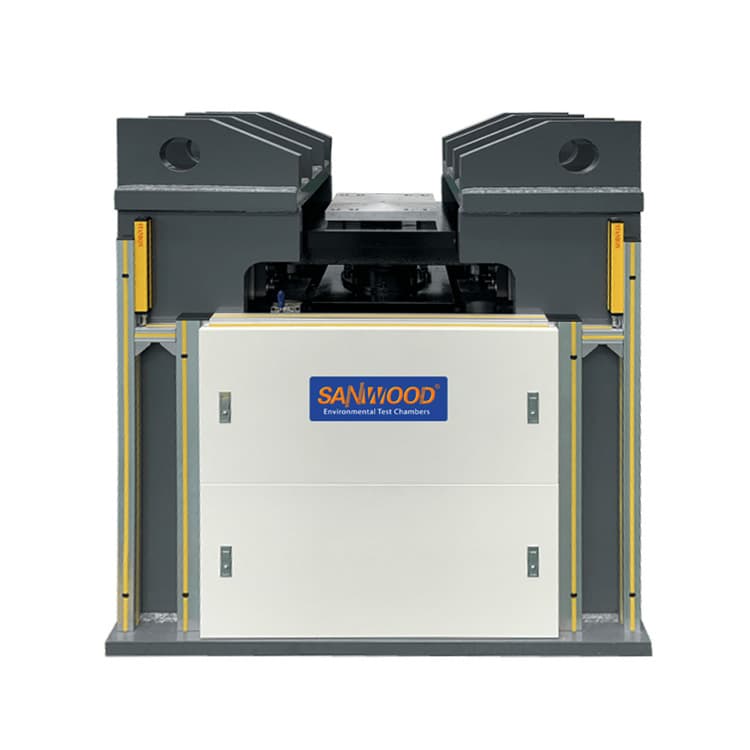

Hệ thống thử rung lắc phương đứng khí nén SM07-50 SM07-100 SM07-200 SM07-500 SM07-1000 Pneumatic Vertical Shock Response Spectrum Test System

Pneumatic Vertical Shock Response Spectrum Test System is used to measure and determine the shock resistance of electrical and electronic products or packaging, and to evaluate the reliability and structural integrity of the test product in a shock environment. The shock response spectrum is the total result of a series of single-degree-of-freedom linear systems with different natural frequencies subjected to the same shock excitation response.

 When a product is subjected to an impact, the maximum value of its impact response means that the product has a maximum stress. Therefore, the shock response spectrum tester can better simulate the shock wave and shock energy suffered in the real environment.

Features:

• 1200mm table size withstand 1000kg load.

• Windows-based stable control system, full-automatic remote-control interface.

• The control & measurement system has built-in SRS specifications and tolerances, which is convenient for users to adjust and apply. It automatically completes the test and generates reports.

• Adjust the driving shock energy by adjusting the air pressure, which is convenient to operate and high in efficiency.

• The equipment takes up a small area and is easy to install.

Model Parameters	SM07－50	SM07－100	SM07－200	SM07－500	SM07－1000
Load (kg)	50	100	200	500	1000
Table size(mm)	500×500	600×600	800×800	1000×1000	1200×1200
Response Frequency Range (Hz)	10～10000
Max. Response Acceleration (g)	6000	5000	3000	2000	1000
Gradient of Rising Stage (dB/Otc)	6～9
Tolerance Range  (dB)	±6～9
Overall Dimension (mm)	1500×1200×1500	1800×1300×1600	2000×1500×1700	2200×1600×1800	2500×1800×2000
Power for Table	AC220V ± 10%，50Hz,  3kVA
Power for Air Compressor	AC220V±10%,   50Hz, 3kVA / AC380V±10%, 50Hz, 5kVA;  output pressure≤1MPa
Weight (kg)	2500	3000	3600	4000	5000
Working Environment	Temperature range 0 ~ 40℃;   Humidity ≤ 80% (25℃), non-condense
