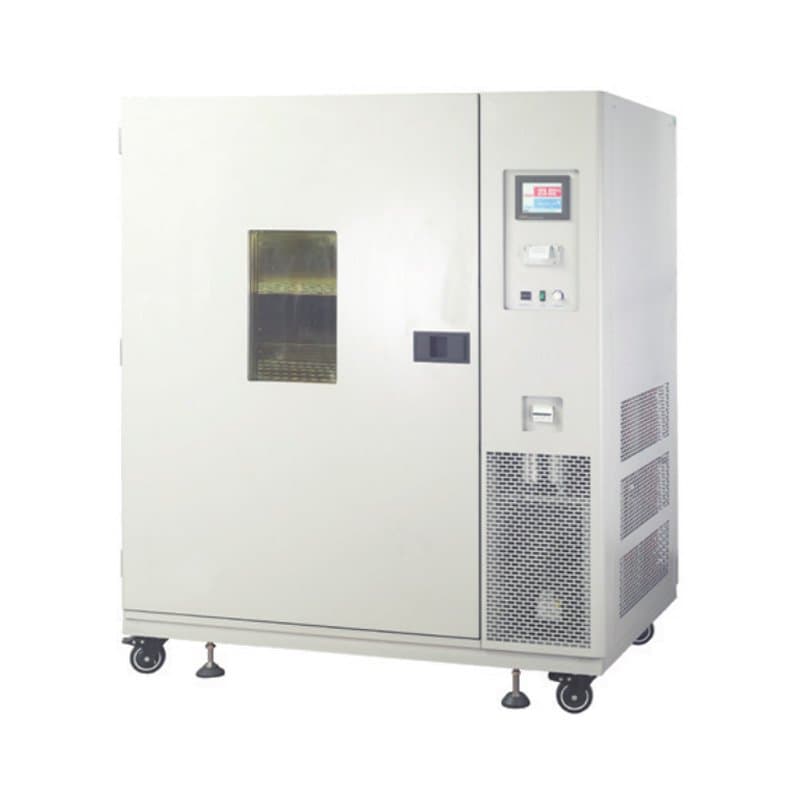

 Large drug stability test chamber

1. Product Name:   Large drug stability test chamber

2.Large drug stability test chamber product model:

SM-LHH-500SD、SM-LHH-500SDP、SM-LHH-800SD、SM-LHH-800SDP、SM-LHH-1000SD、SM-LHH-1000SDP、SM-LHH-1500SD SM-LHH-1500SDP、SM-LHH-500GSD,LHH-500GSP、SM-LHH-800GSD、SM-LHH-800GSP、SM-LHH-1000GSD、SM-LHH-1000GSP、SM-LHH-1500GSP

3.Large drug stability test chamber Applications:

The scientific method to create a drug for a long time to failure evaluation of stable temperature, humidity and light environment for pharmaceutical enterprises to accelerate drug test, long-term test, high humidity and strong light test, is the best choice for pharmaceutical companies and drug stability test program.

4.Large drug stability test chamber product features:

 (1) New fluorine free design, high efficiency, low energy consumption, and promote energy saving

 (2) Adopt special stainless steel inner container, four corners semicircle arc design, easy to clean, easy to operate

 (3) Microcomputer servo controller, digital temperature and humidity display (sd/gsd has this function)

 (4) LCD touch screen controller, all functions are displayed on the screen in graphic and text form, and can observe the machine running state by curve diagram. (sdp/gsp has this function)

 (5) Continuous operation guarantee: two sets of fully enclosed compressor units are automatically switched to ensure continuous operation of the equipment

 (6) Continuous operation without defrosting, avoid in the process of using, because the defrosting temperature and humidity generation box fluctuations.

 (7) Imported humidity sensor is used to avoid the trouble caused by frequent change of wet belt in traditional dry and wet bulb sensor

(8)  Gsd/gsp series with illumination stepless regulation function.

5.Large drug stability test chamber Security function:

(1) When the box door is opened, the breeze circulation and heating are stopped automatically, and there is no disadvantage of temperature overshoot

(2)  The speed of the circulation fan is automatically controlled to avoid the volatilization of the sample caused by too high wind speed

(3)  With password lock screen function, to avoid non experimental personnel misoperation

(4)  Independent temperature alarm system, sound and light alarm, prompting the operator

(5)  Temperature deviation alarm, compressor overheating, overload, over voltage protection and water shortage protection

(6) Wired monitoring alarm system (sdp/gsp series has this function)

6. Large drug stability test chamber Technical parameters

drug stability test chamber	drug stability test chamber（Without  light control）
model	LHH-500SD	LHH-800SD	LHH-1000SD	LHH-1500SD
	LHH-500SDP	LHH-800SDP	LHH-1000SDP	LHH-1500SDP
Temperature  control range	0～65℃
Temperature fluctuation / uniformity	±0.5℃/±2℃
Humidity range / deviation	35～95%RH/±3%RH
light	without
refrigeration system	Two sets of imported independent, imported, fully closed compressor automatic switching
controller	SD series: programmable liquid crystal controller
	SDP series: programmable touch screen controller
sensor	Temperature: PT100, platinum resistance, humidity: capacitive humidity sensor
operating ambient temperature	RT+5～30℃
power	AC220V 50HZ	AC380V 50HZ
input power	3750W	7150W	7150W	10600W
volume	500L	800L	1000L	1500L
inner size(mm)	670×725×1020	800×590×1650	1050×590×1650	1550×590×1650
W×D×H
outside size(mm)	850×1100×1930	1360×890×2000	1610×890×2000	2110×890×200
W×D×H
Carrier tray (standard)	4 ps
safety device	Compressor overheating protection, fan overheating protection, over temperature protection , compressor overpressure protection, overload protection, water shortage protection, cable monitoring alarm system



drug stability test chamber	drug stability test chamber with light control
model	LHH-500GSD	LHH-800GSD	LHH-1000GSD
	LHH-500GSP	LHH-800GSP	LHH-1000GSP
			LHH-1500GSP
Temperature control range	without light：0～65℃   with light：10～50℃
Temperature fluctuation / uniformity	±0.5℃/±2℃
Humidity range / deviation	35～95%RH/±3%RH
light	0-6000LX≤500LX
refrigeration system	Two sets of imported independent, imported, fully closed compressor automatic switching
controller	GSD series: programmable liquid crystal controller
	GSP series: programmable touch screen controller
sensor	Temperature: PT100, platinum resistance, humidity: capacitive humidity senso
operating ambient temperature	RT+5～30℃
power	AC220V 50HZ	AC380V 50HZ
input power	3910W	7350W	7350W/10800W
volume	500L	800L	1000L
			1500L
inner size(mm)	670×725×1020	800×590×1650	1050×590×1650
W×D×H			1550×590×1650
outside size (mm)	850×1100×1930	1360×890×2000	1610×890×2000
W×D×H			2110×890×2000
Carrier tray (standard)	4
