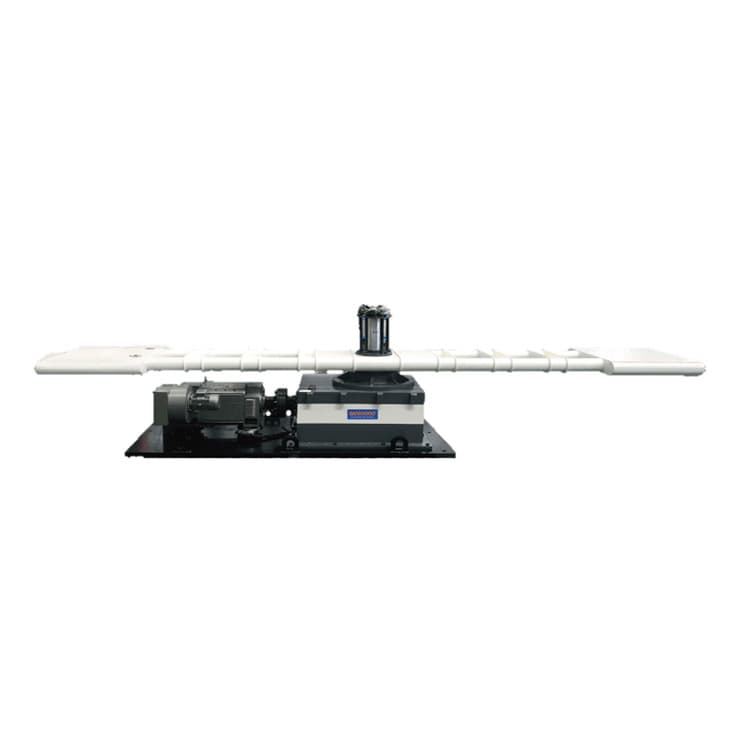

Thiết bị thử gia tốc ly tâm SM10-30 SM10-50 SM10-100 SM10-100A SM10-200 SM10-500 SM10-1000 SM10-1500 Centrifugal Constant Acceleration Tester (Box Type)

Centrifugal Constant Acceleration Tester (Arm Type) are used to test articles under extreme acceleration conditions based on standard like MIL-STD-810F, MIL-STD-202 and IEC68-2-7.

It is most suitable for testing electronic components or devices. Under high g effect on microcircuits, to check adaptability and reliability of wiring and the internal structures. It may expose mechanical and structural defects that are not found with vibration and shock tests.

Model	SM10－30	SM10－50	SM10－100	SM10－100A	SM10－200	SM10－500	SM10－1000	SM10－1500
Parameters
Max. Load (kg) / Position	30×2	50×2	100×2			500×2	1000×2	1500×2
Acceleration (g)	0.5～100
Acceleration Accuracy (%)	±1
Max. Specimen Dimension (mm)	300×300×300	400×400×400	500×500×500		700×700×700	1000×1000×1000	1200×1200×1200	1500×1500×1500
Specimen Installed Radius (mm)	1000	1200	1500	2250	2500	3000	6000	7500
Launch/Stop Time (Min)	≤3				≤5		≤8	≤10
Continues Working Time (min)	60						30
Consumption Power (kVA)	40			55	100	120	450	500
Inner Diameter of Foundation (mm)	Φ3000	Φ4000	Φ4500	Φ6000	Φ7500	Φ8500	Φ15000	Φ18000
Collector Ring	60 rings 500V5A
Weight (kg)	2500	2800	3000	3500	6000	8000	15000	30000
Power Supply	AC380V±10%,  50/60Hz
Measurement and Control System	Automatic computer control and   available with manual control
Remarks	Collector ring and control accuracy can be configured in accordance with relevant standards or user requirements.
Working Environment	Temperature range 0～40℃,   humidity ≤80% (no condense)
Standards	MIL-STD-810F       IEC68-2-7
