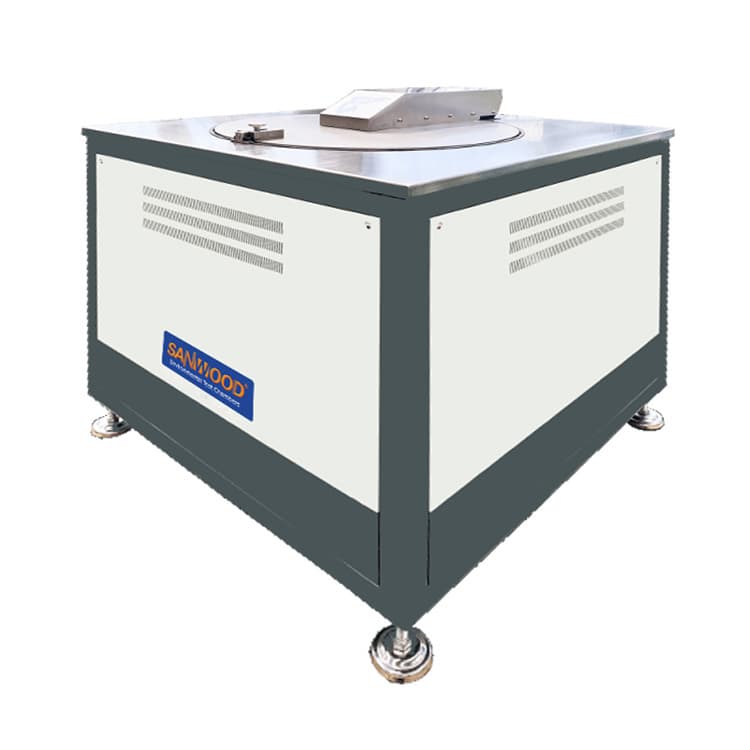

Thiết bị thử gia tốc ly tâm SM09-03 SM09-05 SM09-10 SM09-20 SM09-2M SM09-3M SM09-4M SM09-8M Centrifugal Constant Acceleration Tester

Centrifugal Constant Acceleration Tester is used to evaluate when components, equipment and other electrical and electronic products are subjected to constant acceleration environment (except gravity), whether the structure adaptability and performance are good, and obtain the units electrical parameters.

Features:

• Advanced control system: Full-automatic computer remote real-time control interface. The operator only needs to input simple values to start the equipment and complete the acceleration test accurately.

• User-friendly display interface: the control interface can display the test curve, tolerance and test time in real time.

• Powerful multi-acceleration continuous test system: It can realize multi-level acceleration continuous test according to the different requirements of the test sample.

• Reliable protection measures: open circuit, over-limit and over-speed protection can be realized.

• Multiple control methods: In the case of automatic control failure or no need of automatic control, the device can still use manual control to complete the test.

• Convenient and quick result output system: After the test, the test report is automatically generated and printed out.

Model	SM09－03	SM09－05	SM09－10	SM09－20	SM09－2M	SM09－3M	SM09－4M	SM09－8M
Parameters
Max. Load (kg)/Position	3×6	5×4	10×2	20×2	0.05×N	0.04×N	0.03×N	0.02×N
Acceleration (g)	3～500		5～100		200～20k	300～30k	500～40k	500～80k
Max. Height for	200		300		—
Specimen (mm)
Installation Radius (mm)	230		500		80～100
Max. Rotating Speed	1400		450		15000	18500	21500	30000
(R/Min)
Launch/Stop Time (Min)	≤3							≤5
Continues Worktime	60				30		5
(Min)
Acceleration Accuracy (%)	≤3
Consumption Power	3		5		7.5		11	15
(kVA)
Overall Dimension (mm)	1100×1100×1200		1650×1350×1100		1000×1000×1100
Collector Ring	15 rings		12rings		—
	500V 5A		500V 5A
Weight (kg)	1200	1600	2300	2500	1200		1500
Power Supply	AC380V±10%
	, 50/60Hz
Measurement &	Automatic computer control   or manual control
Control System
Remarks	The   current collector and the control precision can be in accordance the related   standards or customer requirements
Working	Temperature Range 0～40℃,   Humidity≤80% (no condense)
Environment
Standards	MIL-STD-810F          IEC68-2-7
