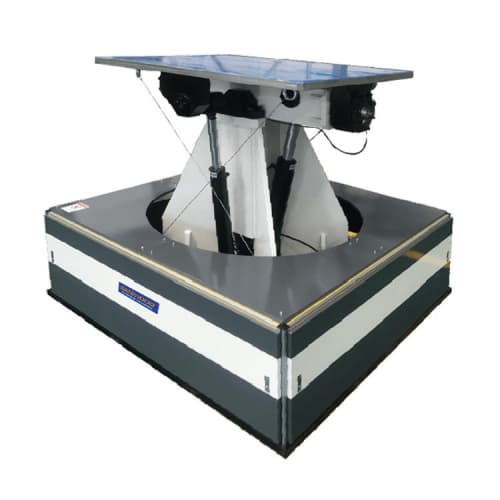

3-DOF Simulation Table simulates various mechanical, electrical, and electronic products installed on ships, seaplanes, and other equipment to perform sway and tilt tests to determine the ability and structural integrity of the product to withstand severe sway and tilt requirements. The tilt test is mainly applicable to large-angle tilt caused by ship damage, manipulation, imbalance in loading and unloading, and wind.

The sway test is mainly applicable to long-term swaying of the ship due to external forces such as wind and waves, which must be maintained normally or products that work reliably, and products that have a significant impact on their performance in a rocking environment.

Features

Based on the stable Windows OS and support automatic remote-control interface, the operator can accurately complete the tilting and swing test by entering simple values.

• The operation interface is mainly based on the real-time display of data curve, it also can display the test parameters, system status, and test progress.

• It can realize the functions of sine signal, self-closed loop adjustment, various function control and alarm prompt.

• The functions of roll, pitch, head-roll and tilt tests can be performed on the same platform.



Model	SM15- 100	SM15- 300	SM15- 500	SM15- 1000	SM15- 1500	SM15- 2000	SM15- 3000	SM15- 5000	SM15- 8000	SM15- 10T
Parameters
Max. Load (kg)	100	300	500	1000	1500	2000	3000	5000	8000	10000
Height of Specimen COG (mm)	500～1000(customized   by product)
Yawing Angular Displacement	±10°
Rolling Angular Displacement	±45°
Pitching Angular Displacement	±30°
Rolling Tilting Angular Displacement	±45°
Pitching Tilting Angular Displacement	±30°
Table size (mm)	800×800	1000×1000	1350×1000	1500×1200		1600×1400	1800×1600	2000×1800	2500×2200	3000×2500
Power Supply and Consumption Power	AC380V	AC380V		AC380V 37kVA	AC380V 45kVA	AC380V 55kVA	AC380V 70kVA	AC380V 90kVA	AC380V 110kVA	AC380V 150kVA
	20kVA	22kVA
Weight (kg)	1500	1800	2000	3000	3500	4000	5000	6000	8000	10000
Working Environment	Temperature Range: 0～40℃,   Humidity ≤80% (no condense)
Standards	IEC60068－2
